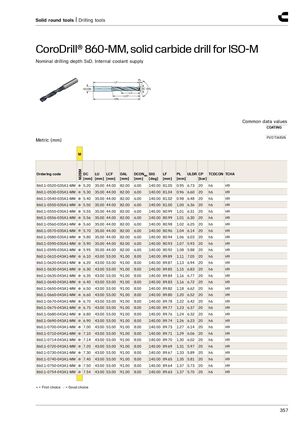

Инструменты сплошного сечения | Сверла
CoroDrill® 860-MM, твердосплавное сверло для ISO-M
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ
Общие значения данных: Покрытие — PVD TiAlSiN
Метрические размеры (мм): Основа — M, M2BM
| Артикул | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP | TCDCON [бар] | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0520-035A1-MM ● | 5.20 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.05 | 0.95 | 6.73 | 20 | h6 | H9 |
| 860.1-0530-035A1-MM ● | 5.30 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.04 | 0.96 | 6.60 | 20 | h6 | H9 |
| 860.1-0540-035A1-MM ● | 5.40 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.02 | 0.98 | 6.48 | 20 | h6 | H9 |
| 860.1-0550-035A1-MM ● | 5.50 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.00 | 1.00 | 6.36 | 20 | h6 | H9 |
| 860.1-0555-035A1-MM ● | 5.55 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.99 | 1.01 | 6.31 | 20 | h6 | H9 |
| 860.1-0556-035A1-MM ● | 5.56 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.99 | 1.01 | 6.30 | 20 | h6 | H9 |
| 860.1-0560-035A1-MM ● | 5.60 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.98 | 1.02 | 6.25 | 20 | h6 | H9 |
| 860.1-0570-035A1-MM ● | 5.70 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.96 | 1.04 | 6.14 | 20 | h6 | H9 |
| 860.1-0580-035A1-MM ● | 5.80 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.94 | 1.06 | 6.03 | 20 | h6 | H9 |
| 860.1-0590-035A1-MM ● | 5.90 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.93 | 1.07 | 5.93 | 20 | h6 | H9 |
| 860.1-0595-035A1-MM ● | 5.95 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.92 | 1.08 | 5.88 | 20 | h6 | H9 |
| 860.1-0610-043A1-MM ● | 6.10 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.89 | 1.11 | 7.05 | 20 | h6 | H9 |
| 860.1-0620-043A1-MM ● | 6.20 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.87 | 1.13 | 6.94 | 20 | h6 | H9 |
| 860.1-0630-043A1-MM ● | 6.30 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.85 | 1.15 | 6.83 | 20 | h6 | H9 |
| 860.1-0635-043A1-MM ● | 6.35 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.84 | 1.16 | 6.77 | 20 | h6 | H9 |
| 860.1-0640-043A1-MM ● | 6.40 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.83 | 1.16 | 6.72 | 20 | h6 | H9 |
| 860.1-0650-043A1-MM ● | 6.50 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.82 | 1.18 | 6.62 | 20 | h6 | H9 |
| 860.1-0660-043A1-MM ● | 6.60 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.80 | 1.20 | 6.52 | 20 | h6 | H9 |
| 860.1-0670-043A1-MM ● | 6.70 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.78 | 1.22 | 6.42 | 20 | h6 | H9 |
| 860.1-0675-043A1-MM ● | 6.75 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.77 | 1.23 | 6.37 | 20 | h6 | H9 |
| 860.1-0680-043A1-MM ● | 6.80 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.76 | 1.24 | 6.32 | 20 | h6 | H9 |
| 860.1-0690-043A1-MM ● | 6.90 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.74 | 1.26 | 6.23 | 20 | h6 | H9 |
| 860.1-0700-043A1-MM ● | 7.00 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.73 | 1.27 | 6.14 | 20 | h6 | H9 |
| 860.1-0710-043A1-MM ● | 7.10 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.71 | 1.29 | 6.06 | 20 | h6 | H9 |
| 860.1-0714-043A1-MM ● | 7.14 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.70 | 1.30 | 6.02 | 20 | h6 | H9 |
| 860.1-0720-043A1-MM ● | 7.20 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.69 | 1.31 | 5.97 | 20 | h6 | H9 |
| 860.1-0730-043A1-MM ● | 7.30 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.67 | 1.33 | 5.89 | 20 | h6 | H9 |
| 860.1-0740-043A1-MM ● | 7.40 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.65 | 1.35 | 5.81 | 20 | h6 | H9 |
| 860.1-0750-043A1-MM ● | 7.50 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.64 | 1.37 | 5.73 | 20 | h6 | H9 |
| 860.1-0754-043A1-MM ● | 7.54 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.63 | 1.37 | 5.70 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
