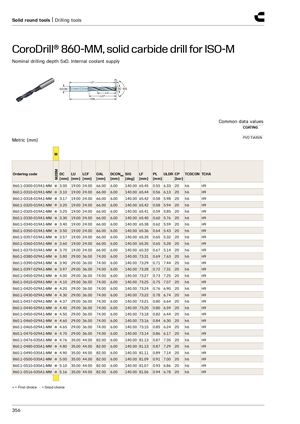

Инструменты круглого сечения | Сверловые инструменты
CoroDrill® 860-MM, сверло из твердого сплава для ISO-M
Номинальная глубина сверления 5×D. Внутренний подвод охлаждающей жидкости
Метрические размеры (мм)
Общие технические данные
- Покрытие: PVD TiAlSiN
| Артикул | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0300-019A1-MM | 3.00 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.45 | 0.55 | 6.33 | 20 | h6 | H9 |
| 860.1-0310-019A1-MM | 3.10 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.44 | 0.56 | 6.13 | 20 | h6 | H9 |
| 860.1-0318-019A1-MM | 3.17 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.42 | 0.58 | 5.98 | 20 | h6 | H9 |
| 860.1-0320-019A1-MM | 3.20 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.42 | 0.58 | 5.94 | 20 | h6 | H9 |
| 860.1-0325-019A1-MM | 3.25 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.41 | 0.59 | 5.85 | 20 | h6 | H9 |
| 860.1-0330-019A1-MM | 3.30 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 5.76 | 20 | h6 | H9 |
| 860.1-0340-019A1-MM | 3.40 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.38 | 0.62 | 5.59 | 20 | h6 | H9 |
| 860.1-0350-019A1-MM | 3.50 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.36 | 0.64 | 5.43 | 20 | h6 | H9 |
| 860.1-0357-019A1-MM | 3.57 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.35 | 0.65 | 5.32 | 20 | h6 | H9 |
| 860.1-0360-019A1-MM | 3.60 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.35 | 0.65 | 5.28 | 20 | h6 | H9 |
| 860.1-0370-019A1-MM | 3.70 | 19.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.33 | 0.67 | 5.14 | 20 | h6 | H9 |
| 860.1-0380-029A1-MM | 3.80 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.31 | 0.69 | 7.63 | 20 | h6 | H9 |
| 860.1-0390-029A1-MM | 3.90 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.29 | 0.71 | 7.44 | 20 | h6 | H9 |
| 860.1-0397-029A1-MM | 3.97 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.28 | 0.72 | 7.31 | 20 | h6 | H9 |
| 860.1-0400-029A1-MM | 4.00 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.27 | 0.73 | 7.25 | 20 | h6 | H9 |
| 860.1-0410-029A1-MM | 4.10 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.25 | 0.75 | 7.07 | 20 | h6 | H9 |
| 860.1-0420-029A1-MM | 4.20 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.24 | 0.76 | 6.90 | 20 | h6 | H9 |
| 860.1-0430-029A1-MM | 4.30 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.22 | 0.78 | 6.74 | 20 | h6 | H9 |
| 860.1-0437-029A1-MM | 4.37 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.21 | 0.80 | 6.64 | 20 | h6 | H9 |
| 860.1-0440-029A1-MM | 4.40 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.20 | 0.80 | 6.59 | 20 | h6 | H9 |
| 860.1-0450-029A1-MM | 4.50 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.18 | 0.82 | 6.44 | 20 | h6 | H9 |
| 860.1-0460-029A1-MM | 4.60 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.16 | 0.84 | 6.30 | 20 | h6 | H9 |
| 860.1-0465-029A1-MM | 4.65 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.15 | 0.85 | 6.24 | 20 | h6 | H9 |
| 860.1-0470-029A1-MM | 4.70 | 29.00 | 36.00 | 74.00 | 6.00 | 140.00 | 73.14 | 0.86 | 6.17 | 20 | h6 | H9 |
| 860.1-0476-035A1-MM | 4.76 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.13 | 0.87 | 7.35 | 20 | h6 | H9 |
| 860.1-0480-035A1-MM | 4.80 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.13 | 0.87 | 7.29 | 20 | h6 | H9 |
| 860.1-0490-035A1-MM | 4.90 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.11 | 0.89 | 7.14 | 20 | h6 | H9 |
| 860.1-0500-035A1-MM | 5.00 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.09 | 0.91 | 7.00 | 20 | h6 | H9 |
| 860.1-0510-035A1-MM | 5.10 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.07 | 0.93 | 6.86 | 20 | h6 | H9 |
| 860.1-0516-035A1-MM | 5.16 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.06 | 0.94 | 6.78 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
