Резцы | Сменные пластины для точения

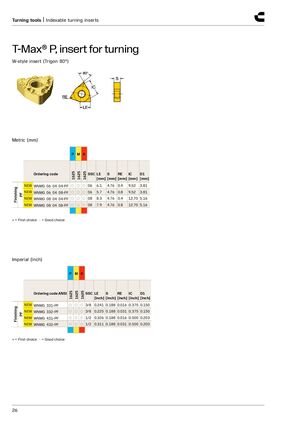

T-Max® P, пластина для точения
Пластина типа W (треугольник 80°)
Метрическая система (мм)
Финишная обработка
| Код заказа | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW WNMG 06 04 04-PF | ○ | ○ | ○ | 06 | 6.1 | 4.76 | 0.4 | 9.52 | 3.81 |
| NEW WNMG 06 04 08-PF | ○ | ○ | ○ | 06 | 5.7 | 4.76 | 0.8 | 9.52 | 3.81 |
| NEW WNMG 08 04 04-PF | ○ | ○ | ○ | 08 | 8.3 | 4.76 | 0.4 | 12.70 | 5.16 |
| NEW WNMG 08 04 08-PF | ○ | ○ | ○ | 08 | 7.9 | 4.76 | 0.8 | 12.70 | 5.16 |
● = Первый выбор ○ = Хороший выбор
Имперская система (дюймы)
Финишная обработка
| Код заказа ANSI | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW WNMG 331-PF | ○ | ○ | ○ | 3/8 | 0.241 | 0.188 | 0.016 | 0.375 | 0.150 |
| NEW WNMG 332-PF | ○ | ○ | ○ | 3/8 | 0.225 | 0.188 | 0.031 | 0.375 | 0.150 |
| NEW WNMG 431-PF | ○ | ○ | ○ | 1/2 | 0.326 | 0.188 | 0.016 | 0.500 | 0.203 |
| NEW WNMG 432-PF | ○ | ○ | ○ | 1/2 | 0.311 | 0.188 | 0.031 | 0.500 | 0.203 |
● = Первый выбор ○ = Хороший выбор
