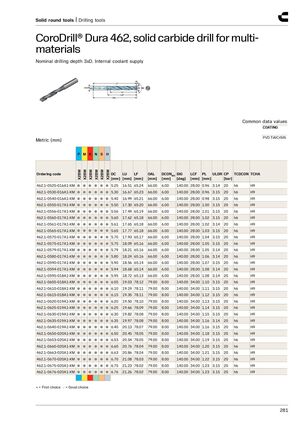

Цельные круглые инструменты | Сверла
CoroDrill® Dura 462, твердосплавное сверло для обработки многоматериальных заготовок
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ
Общие значения параметров
Покрытие: PVD TiAlCrSiN
Метрическая система (мм)
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] |
|---|---|---|---|---|---|---|---|---|
| 462.1-0525-016A1-XM | 5.25 | 16.51 | 65.24 | 66.00 | 6.00 | 140.00 | 28.00 | 0.96 |
| 462.1-0530-016A1-XM | 5.30 | 16.67 | 65.23 | 66.00 | 6.00 | 140.00 | 28.00 | 0.96 |
| 462.1-0540-016A1-XM | 5.40 | 16.99 | 65.21 | 66.00 | 6.00 | 140.00 | 28.00 | 0.98 |
| 462.1-0550-017A1-XM | 5.50 | 17.30 | 65.20 | 66.00 | 6.00 | 140.00 | 28.00 | 1.00 |
| 462.1-0556-017A1-XM | 5.56 | 17.49 | 65.19 | 66.00 | 6.00 | 140.00 | 28.00 | 1.01 |
| 462.1-0560-017A1-XM | 5.60 | 17.62 | 65.18 | 66.00 | 6.00 | 140.00 | 28.00 | 1.02 |
| 462.1-0595-018A1-XM | 5.95 | 18.72 | 65.13 | 66.00 | 6.00 | 140.00 | 28.00 | 1.08 |
| 462.1-0605-018A1-XM | 6.05 | 19.03 | 78.12 | 79.00 | 8.00 | 140.00 | 34.00 | 1.10 |
| 462.1-0650-020A1-XM | 6.50 | 20.45 | 78.05 | 79.00 | 8.00 | 140.00 | 34.00 | 1.18 |
| 462.1-0676-020A1-XM | 6.76 | 21.26 | 78.02 | 79.00 | 8.00 | 140.00 | 34.00 | 1.23 |
● = Первый выбор ○ = Хороший выбор
