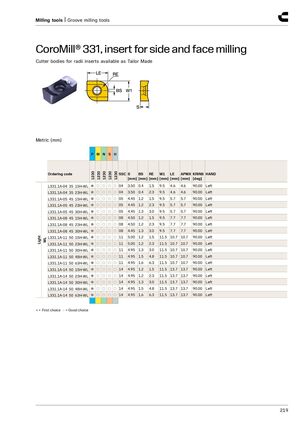

Milling tools | Groove milling tools CoroMill® 331, insert for side and face milling Cutter bodies for radii inserts available as Tailor Made Metric (mm) P M N S H 1230 1230 1230 1230 1230 Ordering code SSC S BS RE W1 LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] L331.1A-04 35 15H-WL ● ○ ○ ○ ○ 04 3.50 0.4 1.5 9.5 4.6 4.6 90.00 Left L331.1A-04 35 23H-WL ● ○ ○ ○ ○ 04 3.50 0.4 2.3 9.5 4.6 4.6 90.00 Left L331.1A-05 45 15H-WL ● ○ ○ ○ ○ 05 4.45 1.2 1.5 9.5 5.7 5.7 90.00 Left L331.1A-05 45 23H-WL ● ○ ○ ○ ○ 05 4.45 1.2 2.3 9.5 5.7 5.7 90.00 Left L331.1A-05 45 30H-WL ● ○ ○ ○ ○ 05 4.45 1.3 3.0 9.5 5.7 5.7 90.00 Left L331.1A-08 45 15H-WL ● ○ ○ ○ ○ 08 4.50 1.2 1.5 9.5 7.7 7.7 90.00 Left L331.1A-08 45 23H-WL ● ○ ○ ○ ○ 08 4.50 1.2 2.3 9.5 7.7 7.7 90.00 Left L331.1A-08 45 30H-WL ● ○ ○ ○ ○ 08 4.45 1.3 3.0 9.5 7.7 7.7 90.00 Left L331.1A-11 50 15H-WL ● ○ ○ ○ ○ 11 5.00 1.2 1.5 11.5 10.7 10.7 90.00 Left Light WL L331.1A-11 50 23H-WL ● ○ ○ ○ ○ 11 5.00 1.2 2.3 11.5 10.7 10.7 90.00 Left L331.1A-11 50 30H-WL ● ○ ○ ○ ○ 11 4.95 1.3 3.0 11.5 10.7 10.7 90.00 Left L331.1A-11 50 48H-WL ● ○ ○ ○ ○ 11 4.95 1.5 4.8 11.5 10.7 10.7 90.00 Left L331.1A-11 50 63H-WL ● ○ ○ ○ ○ 11 4.95 1.6 6.3 11.5 10.7 10.7 90.00 Left L331.1A-14 50 15H-WL ● ○ ○ ○ ○ 14 4.95 1.2 1.5 11.5 13.7 13.7 90.00 Left L331.1A-14 50 23H-WL ● ○ ○ ○ ○ 14 4.95 1.2 2.3 11.5 13.7 13.7 90.00 Left L331.1A-14 50 30H-WL ● ○ ○ ○ ○ 14 4.95 1.3 3.0 11.5 13.7 13.7 90.00 Left L331.1A-14 50 48H-WL ● ○ ○ ○ ○ 14 4.95 1.5 4.8 11.5 13.7 13.7 90.00 Left L331.1A-14 50 63H-WL ● ○ ○ ○ ○ 14 4.95 1.6 6.3 11.5 13.7 13.7 90.00 Left ● = First choice ○ = Good choice 219
