Инструменты для фрезерования | Инструменты для фрезерования канавок

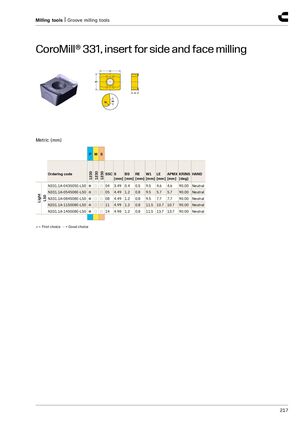

CoroMill® 331, пластина для торцевого и бокового фрезерования
Метрические размеры (мм)
| Код заказа | SSC | S [мм] | BS [мм] | RE [мм] | W1 [мм] | LE [мм] | APMX [мм] | KRINS [град] | HAND | |
|---|---|---|---|---|---|---|---|---|---|---|
| N331.1A-043505E-L50 | ● ○ ○ | 04 | 3.49 | 0.4 | 0.5 | 9.5 | 4.6 | 4.6 | 90.00 | Neutral |
| N331.1A-054508E-L50 | ● ○ ○ | 05 | 4.49 | 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | Neutral |
| N331.1A-084508E-L50 | ● ○ ○ | 08 | 4.49 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral |
| N331.1A-115008E-L50 | ● ○ ○ | 11 | 4.99 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral |
| N331.1A-145008E-L50 | ● ○ ○ | 14 | 4.98 | 1.2 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | Neutral |
● = Первый выбор ○ = Хороший выбор
