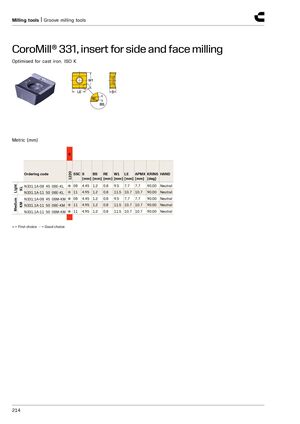

Инструменты для фрезерования | Инструменты для фрезерования канавок
CoroMill® 331, пластина для торцевого и бокового фрезерования
Оптимизирована для чугуна, ISO K
Метрические размеры (мм)
| Код заказа | SSC | S [мм] | BS [мм] | RE [мм] | W1 [мм] | LE [мм] | APMX [мм] | KRINS [град] | HAND | |
|---|---|---|---|---|---|---|---|---|---|---|
| N331.1A-08 45 08E-KL | ● | 08 | 4.45 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral |
| N331.1A-11 50 08E-KL | ● | 11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral |
| N331.1A-08 45 08M-KM | ● | 08 | 4.45 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral |
| N331.1A-11 50 08E-KM | ● | 11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral |
| N331.1A-11 50 08M-KM | ● | 11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral |
● = Первый выбор ○ = Хороший выбор
