Фрезерные инструменты | Торцовые фрезерные инструменты

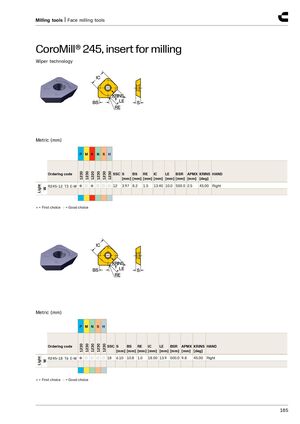

CoroMill® 245, пластина для фрезерования
Технология с подрезным лезвием
| Артикул | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град.] | HAND |
|---|---|---|---|---|---|---|---|---|---|---|
| R245-12 T3 E-W | 12 | 3.97 | 8.2 | 1.5 | 13.40 | 10.0 | 500.0 | 2.5 | 45.00 | Right |
● = Первый выбор ○ = Хороший выбор
| Артикул | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град.] | HAND |
|---|---|---|---|---|---|---|---|---|---|---|
| R245-18 T6 E-W | 18 | 6.10 | 10.8 | 1.0 | 18.00 | 13.9 | 500.0 | 9.8 | 45.00 | Right |
● = Первый выбор ○ = Хороший выбор
