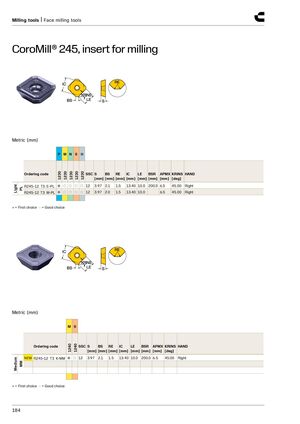

Фрезерные инструменты | Торцовые фрезерные инструменты
CoroMill® 245, пластина для фрезерования
| Артикул | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град.] | HAND |
|---|---|---|---|---|---|---|---|---|---|---|
| R245-12 T3 E-PL | 12 | 3.97 | 2.1 | 1.5 | 13.40 | 10.0 | 200.0 | 6.5 | 45.00 | Right |
| R245-12 T3 M-PL | 12 | 3.97 | 2.0 | 1.5 | 13.40 | 10.0 | — | 6.5 | 45.00 | Right |
● = Первый выбор ○ = Хороший выбор
| Артикул | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град.] | HAND |
|---|---|---|---|---|---|---|---|---|---|---|
| NEW R245-12 T3 K-MM | 12 | 3.97 | 2.1 | 1.5 | 13.40 | 10.0 | 200.0 | 6.5 | 45.00 | Right |
● = Первый выбор ○ = Хороший выбор
