Фрезерные инструменты | Плечевые фрезы

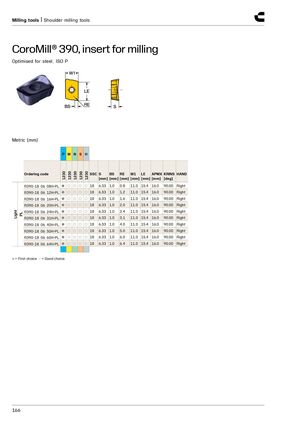

CoroMill® 390, пластина для фрезерования
Оптимизирована для стали, ISO P
Легкий режим PL
Метрические размеры (мм)
| Артикул | Выбор | S (мм) | BS (мм) | RE (мм) | W1 (мм) | LE (мм) | APMX (мм) | KRINS (град) | Направление |
|---|---|---|---|---|---|---|---|---|---|
| R390-18 06 08H-PL | ● (Первый выбор) | 6.33 | 1.0 | 0.8 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
| R390-18 06 12H-PL | ● (Первый выбор) | 6.33 | 1.0 | 1.2 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
| R390-18 06 16H-PL | ● (Первый выбор) | 6.33 | 1.0 | 1.6 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
| R390-18 06 20H-PL | ● (Первый выбор) | 6.33 | 1.0 | 2.0 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
| R390-18 06 24H-PL | ● (Первый выбор) | 6.33 | 1.0 | 2.4 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
| R390-18 06 31H-PL | ● (Первый выбор) | 6.33 | 1.0 | 3.1 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
| R390-18 06 40H-PL | ● (Первый выбор) | 6.33 | 1.0 | 4.0 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
| R390-18 06 50H-PL | ● (Первый выбор) | 6.33 | 1.0 | 5.0 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
| R390-18 06 60H-PL | ● (Первый выбор) | 6.33 | 1.0 | 6.0 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
| R390-18 06 64H-PL | ● (Первый выбор) | 6.33 | 1.0 | 6.4 | 11.0 | 15.4 | 16.0 | 90.00 | Правое вращение |
