Фрезерные инструменты | Плечевые фрезы

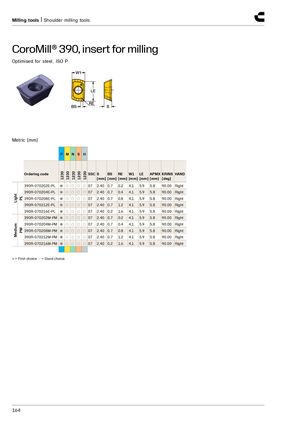

CoroMill® 390, пластина для фрезерования
Оптимизирована для стали, ISO P
Метрические размеры (мм)
| Артикул | Выбор | S (мм) | BS (мм) | RE (мм) | W1 (мм) | LE (мм) | APMX (мм) | KRINS (град) | Направление |
|---|---|---|---|---|---|---|---|---|---|
| 390R-070202E-PL | ● (Первый выбор) | 2.40 | 0.7 | 0.2 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
| 390R-070204E-PL | ● (Первый выбор) | 2.40 | 0.7 | 0.4 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
| 390R-070208E-PL | ● (Первый выбор) | 2.40 | 0.7 | 0.8 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
| 390R-070212E-PL | ● (Первый выбор) | 2.40 | 0.7 | 1.2 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
| 390R-070216E-PL | ● (Первый выбор) | 2.40 | 0.2 | 1.6 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
| 390R-070202M-PM | ● (Первый выбор) | 2.40 | 0.7 | 0.2 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
| 390R-070204M-PM | ● (Первый выбор) | 2.40 | 0.7 | 0.4 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
| 390R-070208M-PM | ● (Первый выбор) | 2.40 | 0.7 | 0.8 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
| 390R-070212M-PM | ● (Первый выбор) | 2.40 | 0.7 | 1.2 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
| 390R-070216M-PM | ● (Первый выбор) | 2.40 | 0.2 | 1.6 | 4.1 | 5.9 | 5.8 | 90.00 | Правое вращение |
