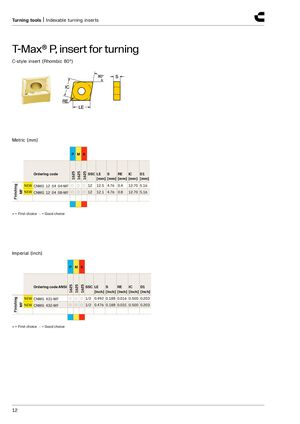

Turning tools | Indexable turning inserts T-Max® P, insert for turning C-style insert (Rhombic 80°) Metric (mm) P M K 1625 1625 1625 Ordering code SSC LE S RE IC D1 [mm] [mm] [mm] [mm] [mm] NEW CNMG 12 04 04-MF ○ ○ ○ 12 12.5 4.76 0.4 12.70 5.16 Finishing ○ ○ ○ 12 MF NEW CNMG 12 04 08-MF 12.1 4.76 0.8 12.70 5.16 ● = First choice ○ = Good choice Imperial (inch) P M K 1625 1625 1625 Ordering code ANSI SSC LE S RE IC D1 [inch] [inch] [inch] [inch] [inch] NEW CNMG 431-MF ○ ○ ○ 1/2 0.492 0.188 0.016 0.500 0.203 Finishing ○ ○ ○ 1/2 0.476 0.188 0.031 0.500 0.203 MF NEW CNMG 432-MF ● = First choice ○ = Good choice 12
