Фрезерные инструменты | Инструменты для профильного фрезерования

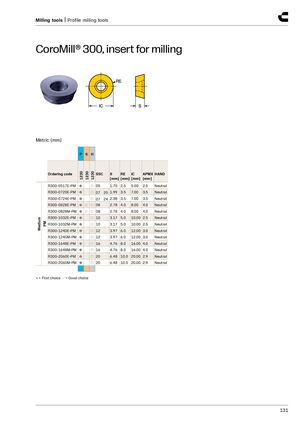

CoroMill® 300, пластина для фрезерования
| Метрические размеры (мм) | ||||||
|---|---|---|---|---|---|---|
| Класс | P | S | H | |||
| 1230 / 1230 / 1230 | ||||||
| Код заказа | SSC | S [мм] | RE [мм] | IC [мм] | APMX [мм] | HAND |
| PM - Средние | ||||||
| R300-0517E-PM ●○ | 05 | 1.70 | 2.5 | 5.00 | 2.5 | Нейтральная |
| R300-0720E-PM ●○ | 07 | 1.99 | 3.5 | 7.00 | 3.5 | Нейтральная |
| R300-0724E-PM ●○ | 07 | 2.38 | 3.5 | 7.00 | 3.5 | Нейтральная |
| R300-0828E-PM ●○○ | 08 | 2.78 | 4.0 | 8.00 | 4.0 | Нейтральная |
| R300-0828M-PM ●○○ | 08 | 2.78 | 4.0 | 8.00 | 4.0 | Нейтральная |
| R300-1032E-PM ●○ | 10 | 3.17 | 5.0 | 10.00 | 2.5 | Нейтральная |
| R300-1032M-PM ●○ | 10 | 3.17 | 5.0 | 10.00 | 2.5 | Нейтральная |
| R300-1240E-PM ●○ | 12 | 3.97 | 6.0 | 12.00 | 3.0 | Нейтральная |
| R300-1240M-PM ●○ | 12 | 3.97 | 6.0 | 12.00 | 3.0 | Нейтральная |
| R300-1648E-PM ●○ | 16 | 4.76 | 8.0 | 16.00 | 4.0 | Нейтральная |
| R300-1648M-PM ●○ | 16 | 4.76 | 8.0 | 16.00 | 4.0 | Нейтральная |
| R300-2060E-PM ●○ | 20 | 6.48 | 10.0 | 20.00 | 2.9 | Нейтральная |
| R300-2060M-PM ●○ | 20 | 6.48 | 10.0 | 20.00 | 2.9 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
