Фрезерные инструменты | Инструменты для профильного фрезерования

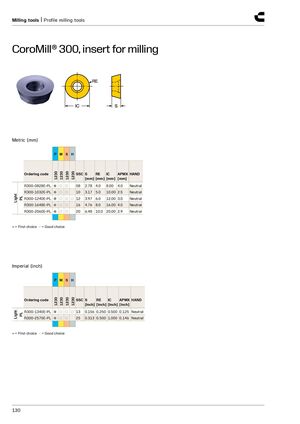

CoroMill® 300, пластина для фрезерования
| Метрические размеры (мм) | ||||||
|---|---|---|---|---|---|---|
| Класс | P | M | S | H | ||
| 1230 / 1230 / 1230 / 1230 | ||||||
| Код заказа | SSC | S [мм] | RE [мм] | IC [мм] | APMX [мм] | HAND |
| PL - Облегченная | ||||||
| R300-0828E-PL ●○○ | 08 | 2.78 | 4.0 | 8.00 | 4.0 | Нейтральная |
| R300-1032E-PL ●○○ | 10 | 3.17 | 5.0 | 10.00 | 2.5 | Нейтральная |
| R300-1240E-PL ●○○○ | 12 | 3.97 | 6.0 | 12.00 | 3.0 | Нейтральная |
| R300-1648E-PL ●○○ | 16 | 4.76 | 8.0 | 16.00 | 4.0 | Нейтральная |
| R300-2060E-PL ●○○ | 20 | 6.48 | 10.0 | 20.00 | 2.9 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
| Дюймовые размеры (дюймы) | ||||||
|---|---|---|---|---|---|---|
| Класс | P | M | S | H | ||
| 1230 / 1230 / 1230 / 1230 | ||||||
| Код заказа | SSC | S [дюйм] | RE [дюйм] | IC [дюйм] | APMX [дюйм] | HAND |
| PL - Облегченная | ||||||
| R300-1340E-PL ●○○○ | 13 | 0.156 | 0.250 | 0.500 | 0.125 | Нейтральная |
| R300-2570E-PL ●○○ | 25 | 0.313 | 0.500 | 1.000 | 0.146 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
