Инструменты отрезки и нарезания канавок | CoroCut® QF

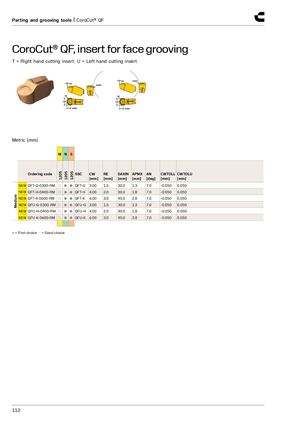

CoroCut® QF, пластина для обработки торцевых канавок
Средняя обработка. T = правый резец, U = левый резец
| Артикул | SSC | CW [мм] | RE [мм] | DAXIN [мм] | APMX [мм] | AN [град] | CWTOLL [мм] | CWTOLU [мм] |
|---|---|---|---|---|---|---|---|---|
| NEW QFT-G-0300-RM | QFT-G | 3.00 | 1.5 | 30.0 | 1.3 | 7.0 | -0.050 | 0.050 |
| NEW QFT-H-0400-RM | QFT-H | 4.00 | 2.0 | 30.0 | 1.8 | 7.0 | -0.050 | 0.050 |
| NEW QFT-K-0600-RM | QFT-K | 6.00 | 3.0 | 45.0 | 2.8 | 7.0 | -0.050 | 0.050 |
| NEW QFU-G-0300-RM | QFU-G | 3.00 | 1.5 | 30.0 | 1.3 | 7.0 | -0.050 | 0.050 |
| NEW QFU-H-0400-RM | QFU-H | 4.00 | 2.0 | 30.0 | 1.8 | 7.0 | -0.050 | 0.050 |
| NEW QFU-K-0600-RM | QFU-K | 6.00 | 3.0 | 45.0 | 2.8 | 7.0 | -0.050 | 0.050 |
● = Первый выбор ○ = Хороший выбор
