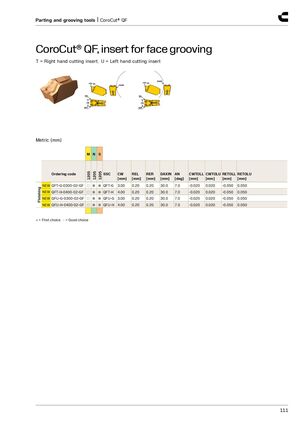

Инструменты отрезки и нарезания канавок | CoroCut® QF
CoroCut® QF, пластина для обработки торцевых канавок
Чистовая обработка. T = правый резец, U = левый резец
| Артикул | SSC | CW [мм] | REL [мм] | RER [мм] | DAXIN [мм] | AN [град] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| NEW QFT-G-0300-02-GF | QFT-G | 3.00 | 0.20 | 0.20 | 30.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| NEW QFT-H-0400-02-GF | QFT-H | 4.00 | 0.20 | 0.20 | 30.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| NEW QFU-G-0300-02-GF | QFU-G | 3.00 | 0.20 | 0.20 | 30.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| NEW QFU-H-0400-02-GF | QFU-H | 4.00 | 0.20 | 0.20 | 30.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
● = Первый выбор ○ = Хороший выбор
