Инструменты сплошного сечения | Сверла

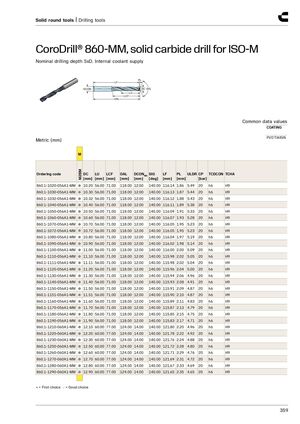

CoroDrill® 860-MM, твердосплавное сверло для ISO-M
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ
Общие значения данных: Покрытие — PVD TiAlSiN
Метрические размеры (мм): Основа — M, M2BM
| Артикул | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP | TCDCON [бар] | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1020-056A1-MM ● | 10.20 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.14 | 1.86 | 5.49 | 20 | h6 | H9 |
| 860.1-1030-056A1-MM ● | 10.30 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.13 | 1.87 | 5.44 | 20 | h6 | H9 |
| 860.1-1032-056A1-MM ● | 10.32 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.12 | 1.88 | 5.43 | 20 | h6 | H9 |
| 860.1-1040-056A1-MM ● | 10.40 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.11 | 1.89 | 5.38 | 20 | h6 | H9 |
| 860.1-1050-056A1-MM ● | 10.50 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.09 | 1.91 | 5.33 | 20 | h6 | H9 |
| 860.1-1060-056A1-MM ● | 10.60 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.07 | 1.93 | 5.28 | 20 | h6 | H9 |
| 860.1-1070-056A1-MM ● | 10.70 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.05 | 1.95 | 5.23 | 20 | h6 | H9 |
| 860.1-1072-056A1-MM ● | 10.72 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.05 | 1.95 | 5.23 | 20 | h6 | H9 |
| 860.1-1080-056A1-MM ● | 10.80 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.04 | 1.97 | 5.19 | 20 | h6 | H9 |
| 860.1-1090-056A1-MM ● | 10.90 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.02 | 1.98 | 5.14 | 20 | h6 | H9 |
| 860.1-1100-056A1-MM ● | 11.00 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.00 | 2.00 | 5.09 | 20 | h6 | H9 |
| 860.1-1110-056A1-MM ● | 11.10 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.98 | 2.02 | 5.05 | 20 | h6 | H9 |
| 860.1-1111-056A1-MM ● | 11.11 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.98 | 2.02 | 5.04 | 20 | h6 | H9 |
| 860.1-1120-056A1-MM ● | 11.20 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.96 | 2.04 | 5.00 | 20 | h6 | H9 |
| 860.1-1130-056A1-MM ● | 11.30 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.94 | 2.06 | 4.96 | 20 | h6 | H9 |
| 860.1-1140-056A1-MM ● | 11.40 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.93 | 2.08 | 4.91 | 20 | h6 | H9 |
| 860.1-1150-056A1-MM ● | 11.50 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.91 | 2.09 | 4.87 | 20 | h6 | H9 |
| 860.1-1151-056A1-MM ● | 11.51 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.90 | 2.10 | 4.87 | 20 | h6 | H9 |
| 860.1-1160-056A1-MM ● | 11.60 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.89 | 2.11 | 4.83 | 20 | h6 | H9 |
| 860.1-1170-056A1-MM ● | 11.70 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.87 | 2.13 | 4.79 | 20 | h6 | H9 |
| 860.1-1180-056A1-MM ● | 11.80 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.85 | 2.15 | 4.75 | 20 | h6 | H9 |
| 860.1-1190-056A1-MM ● | 11.90 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.83 | 2.17 | 4.71 | 20 | h6 | H9 |
| 860.1-1210-060A1-MM ● | 12.10 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.80 | 2.20 | 4.96 | 20 | h6 | H9 |
| 860.1-1220-060A1-MM ● | 12.20 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.78 | 2.22 | 4.92 | 20 | h6 | H9 |
| 860.1-1230-060A1-MM ● | 12.30 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.76 | 2.24 | 4.88 | 20 | h6 | H9 |
| 860.1-1250-060A1-MM ● | 12.50 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.72 | 2.28 | 4.80 | 20 | h6 | H9 |
| 860.1-1260-060A1-MM ● | 12.60 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.71 | 2.29 | 4.76 | 20 | h6 | H9 |
| 860.1-1270-060A1-MM ● | 12.70 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.69 | 2.31 | 4.72 | 20 | h6 | H9 |
| 860.1-1280-060A1-MM ● | 12.80 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.67 | 2.33 | 4.69 | 20 | h6 | H9 |
| 860.1-1290-060A1-MM ● | 12.90 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.65 | 2.35 | 4.65 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
