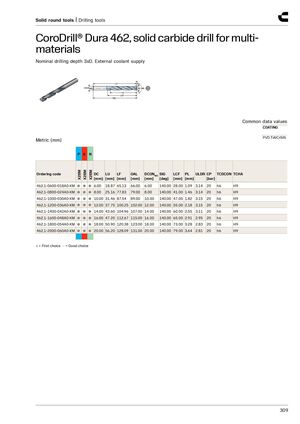

Монолитные круглые инструменты | Сверлильные инструменты
CoroDrill® Dura 462, монолитное карбидное сверло для многопроцессной обработки
Номинальная глубина сверления: 3xD. Внешняя подача охлаждающей жидкости.
Стандартные значения параметров
Покрытие: PVD TiAlCrSiN
Метрические размеры (мм)
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR [bar] | CP | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0600-018A0-XM | 6.00 | 18.87 | 65.13 | 66.00 | 6.00 | 140.00 | 28.00 | 1.09 | 3.14 | 20 | h6 | H9 | |
| 462.1-0800-024A0-XM | 8.00 | 25.16 | 77.83 | 79.00 | 8.00 | 140.00 | 41.00 | 1.46 | 3.14 | 20 | h6 | H9 | |
| 462.1-1000-030A0-XM | 10.00 | 31.46 | 87.54 | 89.00 | 10.00 | 140.00 | 47.00 | 1.82 | 3.15 | 20 | h6 | H9 | |
| 462.1-1200-036A0-XM | 12.00 | 37.75 | 100.25 | 102.00 | 12.00 | 140.00 | 55.00 | 2.18 | 3.15 | 20 | h6 | H9 | |
| 462.1-1400-042A0-XM | 14.00 | 43.60 | 104.96 | 107.00 | 14.00 | 140.00 | 60.00 | 2.55 | 3.11 | 20 | h6 | H9 | |
| 462.1-1600-048A0-XM | 16.00 | 47.20 | 112.67 | 115.00 | 16.00 | 140.00 | 65.00 | 2.91 | 2.95 | 20 | h6 | H9 | |
| 462.1-1800-054A0-XM | 18.00 | 50.90 | 120.38 | 123.00 | 18.00 | 140.00 | 73.00 | 3.28 | 2.83 | 20 | h6 | H9 | |
| 462.1-2000-060A0-XM | 20.00 | 56.20 | 128.09 | 131.00 | 20.00 | 140.00 | 79.00 | 3.64 | 2.81 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
