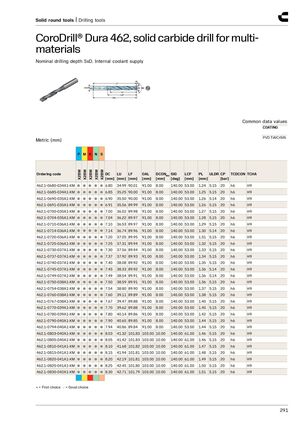

Цельные круглые инструменты | Сверлильные инструменты
CoroDrill® Dura 462, цельнокарбидное сверло для многоматериальной обработки
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ
Общие значения параметров
Покрытие: PVD TiAlCrSiN
Метрические размеры (мм)
Применимость: P, M, K, N, S (вариант X2BM)
| Код заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | Давление [бар] | Допуск | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0680-034A1-XM | 6.80 | 34.99 | 90.01 | 91.00 | 8.00 | 140.00 | 53.00 | 1.24 | 5.15 | 20 | h6 | H9 |
| 462.1-0685-034A1-XM | 6.85 | 35.25 | 90.00 | 91.00 | 8.00 | 140.00 | 53.00 | 1.25 | 5.15 | 20 | h6 | H9 |
| 462.1-0690-035A1-XM | 6.90 | 35.50 | 90.00 | 91.00 | 8.00 | 140.00 | 53.00 | 1.26 | 5.14 | 20 | h6 | H9 |
| 462.1-0691-035A1-XM | 6.91 | 35.56 | 89.99 | 91.00 | 8.00 | 140.00 | 53.00 | 1.26 | 5.15 | 20 | h6 | H9 |
| 462.1-0700-035A1-XM | 7.00 | 36.02 | 89.98 | 91.00 | 8.00 | 140.00 | 53.00 | 1.27 | 5.15 | 20 | h6 | H9 |
| 462.1-0704-035A1-XM | 7.04 | 36.22 | 89.97 | 91.00 | 8.00 | 140.00 | 53.00 | 1.28 | 5.15 | 20 | h6 | H9 |
| 462.1-0710-036A1-XM | 7.10 | 36.53 | 89.97 | 91.00 | 8.00 | 140.00 | 53.00 | 1.29 | 5.15 | 20 | h6 | H9 |
| 462.1-0714-036A1-XM | 7.14 | 36.74 | 89.96 | 91.00 | 8.00 | 140.00 | 53.00 | 1.30 | 5.14 | 20 | h6 | H9 |
| 462.1-0720-036A1-XM | 7.20 | 37.05 | 89.95 | 91.00 | 8.00 | 140.00 | 53.00 | 1.31 | 5.15 | 20 | h6 | H9 |
| 462.1-0725-036A1-XM | 7.25 | 37.31 | 89.94 | 91.00 | 8.00 | 140.00 | 53.00 | 1.32 | 5.15 | 20 | h6 | H9 |
| 462.1-0730-037A1-XM | 7.30 | 37.56 | 89.94 | 91.00 | 8.00 | 140.00 | 53.00 | 1.33 | 5.15 | 20 | h6 | H9 |
| 462.1-0737-037A1-XM | 7.37 | 37.92 | 89.93 | 91.00 | 8.00 | 140.00 | 53.00 | 1.34 | 5.15 | 20 | h6 | H9 |
| 462.1-0740-037A1-XM | 7.40 | 38.08 | 89.92 | 91.00 | 8.00 | 140.00 | 53.00 | 1.35 | 5.15 | 20 | h6 | H9 |
| 462.1-0745-037A1-XM | 7.45 | 38.33 | 89.92 | 91.00 | 8.00 | 140.00 | 53.00 | 1.36 | 5.14 | 20 | h6 | H9 |
| 462.1-0749-037A1-XM | 7.49 | 38.54 | 89.91 | 91.00 | 8.00 | 140.00 | 53.00 | 1.36 | 5.14 | 20 | h6 | H9 |
| 462.1-0750-038A1-XM | 7.50 | 38.59 | 89.91 | 91.00 | 8.00 | 140.00 | 53.00 | 1.36 | 5.15 | 20 | h6 | H9 |
| 462.1-0754-038A1-XM | 7.54 | 38.80 | 89.90 | 91.00 | 8.00 | 140.00 | 53.00 | 1.37 | 5.15 | 20 | h6 | H9 |
| 462.1-0760-038A1-XM | 7.60 | 39.11 | 89.89 | 91.00 | 8.00 | 140.00 | 53.00 | 1.38 | 5.15 | 20 | h6 | H9 |
| 462.1-0767-038A1-XM | 7.67 | 39.47 | 89.88 | 91.00 | 8.00 | 140.00 | 53.00 | 1.40 | 5.15 | 20 | h6 | H9 |
| 462.1-0770-039A1-XM | 7.70 | 39.62 | 89.88 | 91.00 | 8.00 | 140.00 | 53.00 | 1.40 | 5.15 | 20 | h6 | H9 |
| 462.1-0780-039A1-XM | 7.80 | 40.14 | 89.86 | 91.00 | 8.00 | 140.00 | 53.00 | 1.42 | 5.15 | 20 | h6 | H9 |
| 462.1-0790-040A1-XM | 7.90 | 40.65 | 89.85 | 91.00 | 8.00 | 140.00 | 53.00 | 1.44 | 5.15 | 20 | h6 | H9 |
| 462.1-0794-040A1-XM | 7.94 | 40.86 | 89.84 | 91.00 | 8.00 | 140.00 | 53.00 | 1.44 | 5.15 | 20 | h6 | H9 |
| 462.1-0803-040A1-XM | 8.03 | 41.32 | 101.83 | 103.00 | 10.00 | 140.00 | 61.00 | 1.46 | 5.15 | 20 | h6 | H9 |
| 462.1-0805-040A1-XM | 8.05 | 41.42 | 101.83 | 103.00 | 10.00 | 140.00 | 61.00 | 1.46 | 5.15 | 20 | h6 | H9 |
| 462.1-0810-041A1-XM | 8.10 | 41.68 | 101.82 | 103.00 | 10.00 | 140.00 | 61.00 | 1.47 | 5.15 | 20 | h6 | H9 |
| 462.1-0815-041A1-XM | 8.15 | 41.94 | 101.81 | 103.00 | 10.00 | 140.00 | 61.00 | 1.48 | 5.15 | 20 | h6 | H9 |
| 462.1-0820-041A1-XM | 8.20 | 42.19 | 101.81 | 103.00 | 10.00 | 140.00 | 61.00 | 1.49 | 5.15 | 20 | h6 | H9 |
| 462.1-0825-041A1-XM | 8.25 | 42.45 | 101.80 | 103.00 | 10.00 | 140.00 | 61.00 | 1.50 | 5.15 | 20 | h6 | H9 |
| 462.1-0830-042A1-XM | 8.30 | 42.71 | 101.79 | 103.00 | 10.00 | 140.00 | 61.00 | 1.51 | 5.15 | 20 | h6 | H9 |
● = Первый выбор | ○ = Хороший выбор
