Твёрдые круглые инструменты | Инструменты для сверления

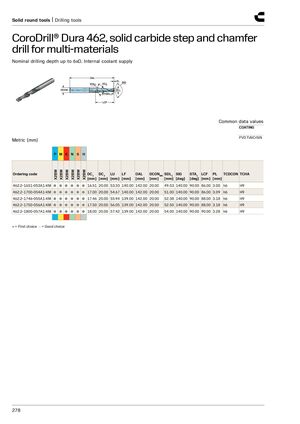

CoroDrill® Dura 462, монолитное твёрдосплавное сверло ступенчатое с фаской для обработки различных материалов
Номинальная глубина сверления до 6xD. Внутреннее подведение СОЖ
Основные значения данных
Покрытие: PVD TiAlCrSiN
Метрические размеры (мм)
P M K N S H X2BM
| Артикул заказа | DC 1 [мм] | DC 2 [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SDL 1 [мм] | SIG [град] | STA 1 [град] | LCF [мм] | PL [мм] | TCDCON [мм] | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.2-1651-053A1-XM | 16.51 | 20.00 | 53.33 | 140.00 | 142.00 | 20.00 | 49.53 | 140.00 | 90.00 | 86.00 | 3.00 | h6 | H9 |
| 462.2-1700-054A1-XM | 17.00 | 20.00 | 54.67 | 140.00 | 142.00 | 20.00 | 51.00 | 140.00 | 90.00 | 86.00 | 3.09 | h6 | H9 |
| 462.2-1746-055A1-XM | 17.46 | 20.00 | 55.94 | 139.00 | 142.00 | 20.00 | 52.38 | 140.00 | 90.00 | 88.00 | 3.18 | h6 | H9 |
| 462.2-1750-056A1-XM | 17.50 | 20.00 | 56.05 | 139.00 | 142.00 | 20.00 | 52.50 | 140.00 | 90.00 | 88.00 | 3.18 | h6 | H9 |
| 462.2-1800-057A1-XM | 18.00 | 20.00 | 57.42 | 139.00 | 142.00 | 20.00 | 54.00 | 140.00 | 90.00 | 90.00 | 3.28 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
