Резцы | Сменные пластины для точения

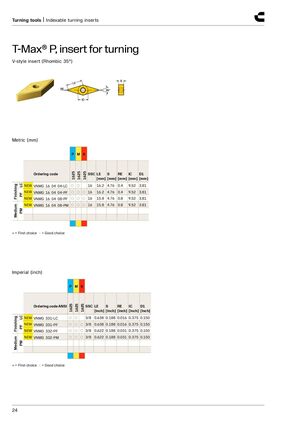

T-Max® P, пластина для точения
Пластина типа V (ромб 35°)
Метрическая система (мм)
Финишная обработка
| Код заказа | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW VNMG 16 04 04-LC | ○ | ○ | 16 | 16.2 | 4.76 | 0.4 | 9.52 | 3.81 | |
| NEW VNMG 16 04 04-PF | ○ | ○ | ○ | 16 | 16.2 | 4.76 | 0.4 | 9.52 | 3.81 |
| NEW VNMG 16 04 08-PF | ○ | ○ | ○ | 16 | 15.8 | 4.76 | 0.8 | 9.52 | 3.81 |
Средний
| Код заказа | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW VNMG 16 04 08-PM | ○ | ○ | ○ | 16 | 15.8 | 4.76 | 0.8 | 9.52 | 3.81 |
● = Первый выбор ○ = Хороший выбор
Имперская система (дюймы)
Финишная обработка
| Код заказа ANSI | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW VNMG 331-LC | ○ | ○ | 3/8 | 0.638 | 0.188 | 0.016 | 0.375 | 0.150 | |
| NEW VNMG 331-PF | ○ | ○ | ○ | 3/8 | 0.638 | 0.188 | 0.016 | 0.375 | 0.150 |
| NEW VNMG 332-PF | ○ | ○ | ○ | 3/8 | 0.622 | 0.188 | 0.031 | 0.375 | 0.150 |
Средний
| Код заказа ANSI | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW VNMG 332-PM | ○ | ○ | ○ | 3/8 | 0.622 | 0.188 | 0.031 | 0.375 | 0.150 |
● = Первый выбор ○ = Хороший выбор
