Цельные круглые инструменты | Фрезерный инструмент

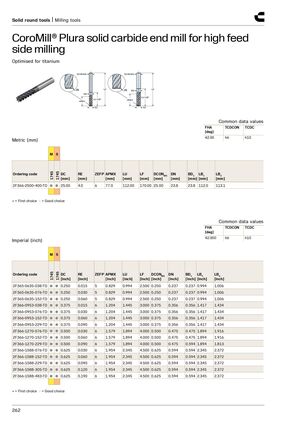

CoroMill® Plura твердосплавный концевой фрез для высокопроизводительного фрезерования боком
Оптимизирован для титана
Значения общих данных
| FHA [град] | TCDCON | TCDC |
|---|---|---|
| 42.00 | h6 | h10 |
Метрические (мм)
| Артикул | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2F366-2500-400-TD | 25.00 | 4.0 | 6 | 77.0 | 112.00 | 170.00 | 25.00 | 23.8 | 23.8 | 112.0 | 113.1 |
Дюймовые (inch)
| Артикул | DC [inch] | RE [inch] | ZEFP | APMX [inch] | LU [inch] | LF [inch] | DCONMS [inch] | DN [inch] | BD 1 [inch] | LB 1 [inch] | LB 2 [inch] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2F365-0635-038-TD | 0.250 | 0.015 | 5 | 0.829 | 0.994 | 2.500 | 0.250 | 0.237 | 0.237 | 0.994 | 1.006 |
| 2F365-0635-076-TD | 0.250 | 0.030 | 5 | 0.829 | 0.994 | 2.500 | 0.250 | 0.237 | 0.237 | 0.994 | 1.006 |
| 2F365-0635-152-TD | 0.250 | 0.060 | 5 | 0.829 | 0.994 | 2.500 | 0.250 | 0.237 | 0.237 | 0.994 | 1.006 |
| 2F366-0953-038-TD | 0.375 | 0.015 | 6 | 1.204 | 1.445 | 3.000 | 0.375 | 0.356 | 0.356 | 1.417 | 1.434 |
| 2F366-0953-076-TD | 0.375 | 0.030 | 6 | 1.204 | 1.445 | 3.000 | 0.375 | 0.356 | 0.356 | 1.417 | 1.434 |
| 2F366-0953-152-TD | 0.375 | 0.060 | 6 | 1.204 | 1.445 | 3.000 | 0.375 | 0.356 | 0.356 | 1.417 | 1.434 |
| 2F366-0953-229-TD | 0.375 | 0.090 | 6 | 1.204 | 1.445 | 3.000 | 0.375 | 0.356 | 0.356 | 1.417 | 1.434 |
| 2F366-1270-076-TD | 0.500 | 0.030 | 6 | 1.579 | 1.894 | 4.000 | 0.500 | 0.475 | 0.475 | 1.894 | 1.916 |
| 2F366-1270-152-TD | 0.500 | 0.060 | 6 | 1.579 | 1.894 | 4.000 | 0.500 | 0.475 | 0.475 | 1.894 | 1.916 |
| 2F366-1270-229-TD | 0.500 | 0.090 | 6 | 1.579 | 1.894 | 4.000 | 0.500 | 0.475 | 0.594 | 1.894 | 1.813 |
| 2F366-1588-076-TD | 0.625 | 0.030 | 6 | 1.954 | 2.345 | 4.500 | 0.625 | 0.594 | 0.594 | 2.345 | 2.372 |
| 2F366-1588-152-TD | 0.625 | 0.060 | 6 | 1.954 | 2.345 | 4.500 | 0.625 | 0.594 | 0.594 | 2.345 | 2.372 |
| 2F366-1588-229-TD | 0.625 | 0.090 | 6 | 1.954 | 2.345 | 4.500 | 0.625 | 0.594 | 0.594 | 2.345 | 2.372 |
| 2F366-1588-305-TD | 0.625 | 0.120 | 6 | 1.954 | 2.345 | 4.500 | 0.625 | 0.594 | 0.594 | 2.345 | 2.372 |
| 2F366-1588-483-TD | 0.625 | 0.190 | 6 | 1.954 | 2.345 | 4.500 | 0.625 | 0.594 | 0.594 | 2.345 | 2.372 |
