Инструменты с круглым корпусом | Фрезы

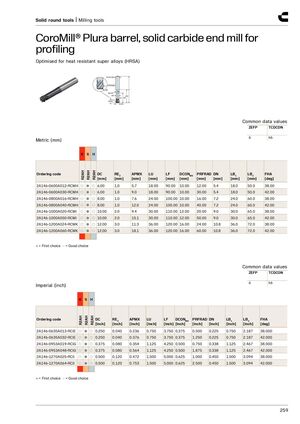

CoroMill® Plura цилиндрическая фреза, монолитная твердосплавная фреза для профилирования
Оптимизирована для обработки жаропрочных суперсплавов
Общие значения данных
| ZEFP | TCDCON |
|---|---|
| 6 | h6 |
Метрические размеры (мм)
| Артикул | DC [мм] | RE [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | PRFRAD [мм] | DN [мм] | LB 1 [мм] | LB 2 [мм] | FHA [град] | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2A146-0600A012-RCMH | ○ | ● | ○ | 6.00 | 1.0 | 5.7 | 18.00 | 90.00 | 10.00 | 12.00 | 5.4 | 18.0 | 50.0 | 38.00 |
| 2A146-0600A030-RCMH | ○ | ● | ○ | 6.00 | 1.0 | 9.0 | 18.00 | 90.00 | 10.00 | 30.00 | 5.4 | 18.0 | 50.0 | 42.00 |
| 2A146-0800A016-RCMH | ○ | ● | ○ | 8.00 | 1.0 | 7.6 | 24.00 | 100.00 | 10.00 | 16.00 | 7.2 | 24.0 | 60.0 | 38.00 |
| 2A146-0800A040-RCMH | ○ | ● | ○ | 8.00 | 1.0 | 12.0 | 24.00 | 100.00 | 10.00 | 40.00 | 7.2 | 24.0 | 60.0 | 42.00 |
| 2A146-1000A020-RCMI | ○ | ● | ○ | 10.00 | 2.0 | 9.4 | 30.00 | 110.00 | 12.00 | 20.00 | 9.0 | 30.0 | 65.0 | 38.00 |
| 2A146-1000A050-RCMI | ○ | ● | ○ | 10.00 | 2.0 | 15.1 | 30.00 | 110.00 | 12.00 | 50.00 | 9.0 | 30.0 | 65.0 | 42.00 |
| 2A146-1200A024-RCMK | ○ | ● | ○ | 12.00 | 3.0 | 11.3 | 36.00 | 120.00 | 16.00 | 24.00 | 10.8 | 36.0 | 72.0 | 38.00 |
| 2A146-1200A060-RCMK | ○ | ● | ○ | 12.00 | 3.0 | 18.1 | 36.00 | 120.00 | 16.00 | 60.00 | 10.8 | 36.0 | 72.0 | 42.00 |
Общие значения данных
| ZEFP | TCDCON |
|---|---|
| 6 | h6 |
Стандартные размеры (дюйм)
| Артикул | DC [дюйм] | RE [дюйм] | APMX [дюйм] | LU [дюйм] | LF [дюйм] | DCONMS [дюйм] | PRFRAD [дюйм] | DN [дюйм] | LB 1 [дюйм] | LB 2 [дюйм] | FHA [град] | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2A146-0635A013-RCIE | ○ | ● | ○ | 0.250 | 0.040 | 0.236 | 0.750 | 3.750 | 0.375 | 0.500 | 0.225 | 0.750 | 2.187 | 38.000 |
| 2A146-0635A032-RCIE | ○ | ● | ○ | 0.250 | 0.040 | 0.376 | 0.750 | 3.750 | 0.375 | 1.250 | 0.225 | 0.750 | 2.187 | 42.000 |
| 2A146-0953A019-RCIG | ○ | ● | ○ | 0.375 | 0.080 | 0.354 | 1.125 | 4.250 | 0.500 | 0.750 | 0.338 | 1.125 | 2.467 | 38.000 |
| 2A146-0953A048-RCIG | ○ | ● | ○ | 0.375 | 0.080 | 0.564 | 1.125 | 4.250 | 0.500 | 1.875 | 0.338 | 1.125 | 2.467 | 42.000 |
| 2A146-1270A025-RCII | ○ | ● | ○ | 0.500 | 0.120 | 0.472 | 1.500 | 5.000 | 0.625 | 1.000 | 0.450 | 1.500 | 3.094 | 38.000 |
| 2A146-1270A064-RCII | ○ | ● | ○ | 0.500 | 0.120 | 0.753 | 1.500 | 5.000 | 0.625 | 2.500 | 0.450 | 1.500 | 3.094 | 42.000 |
● Первый выбор ○ Хороший выбор
