Резцы | Сменные пластины для точения

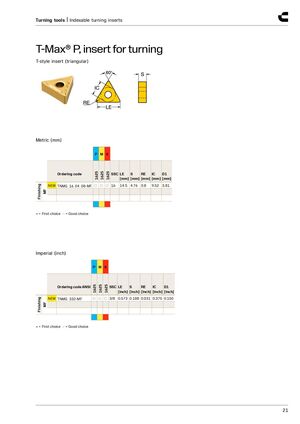

T-Max® P, пластина для точения
Пластина типа T (треугольная)
Метрическая система (мм)
Финишная обработка
| Код заказа | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW TNMG 16 04 08-MF | ○ | ○ | ○ | 16 | 14.5 | 4.76 | 0.8 | 9.52 | 3.81 |
● = Первый выбор ○ = Хороший выбор
Имперская система (дюймы)
Финишная обработка
| Код заказа ANSI | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW TNMG 332-MF | ○ | ○ | ○ | 3/8 | 0.573 | 0.188 | 0.031 | 0.375 | 0.150 |
● = Первый выбор ○ = Хороший выбор
