Цельные круглые инструменты | Инструменты фрезерования

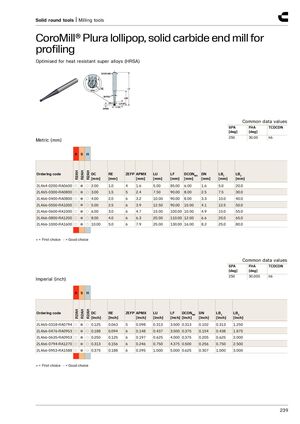

CoroMill® Plura леденец, твердосплавная концевая фреза для профилирования
Оптимизирована для жаростойких суперсплавов (HRSA)
| Артикул | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] | LB 1 [мм] | LB 2 [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| 2L464-0200-RA0600 | 2.00 | 1.0 | 4 | 1.6 | 5.00 | 85.00 | 6.00 | 1.6 | 5.0 | 20.0 |
| 2L465-0300-RA0800 | 3.00 | 1.5 | 5 | 2.4 | 7.50 | 90.00 | 8.00 | 2.5 | 7.5 | 30.0 |
| 2L466-0400-RA0800 | 4.00 | 2.0 | 6 | 3.2 | 10.00 | 90.00 | 8.00 | 3.3 | 10.0 | 40.0 |
| 2L466-0500-RA1000 | 5.00 | 2.5 | 6 | 3.9 | 12.50 | 90.00 | 10.00 | 4.1 | 12.5 | 50.0 |
| 2L466-0600-RA1000 | 6.00 | 3.0 | 6 | 4.7 | 15.00 | 100.00 | 10.00 | 4.9 | 15.0 | 55.0 |
| 2L466-0800-RA1200 | 8.00 | 4.0 | 6 | 6.3 | 20.00 | 110.00 | 12.00 | 6.6 | 20.0 | 65.0 |
| 2L466-1000-RA1600 | 10.00 | 5.0 | 6 | 7.9 | 25.00 | 130.00 | 16.00 | 8.2 | 25.0 | 80.0 |
| Артикул | DC [дюйм] | RE [дюйм] | ZEFP | APMX [дюйм] | LU [дюйм] | LF [дюйм] | DCONMS [дюйм] | DN [дюйм] | LB 1 [дюйм] | LB 2 [дюйм] |
|---|---|---|---|---|---|---|---|---|---|---|
| 2L465-0318-RA0794 | 0.125 | 0.063 | 5 | 0.098 | 0.313 | 3.500 | 0.313 | 0.102 | 0.313 | 1.250 |
| 2L466-0476-RA0953 | 0.188 | 0.094 | 6 | 0.148 | 0.437 | 3.500 | 0.375 | 0.154 | 0.438 | 1.875 |
| 2L466-0635-RA0953 | 0.250 | 0.125 | 6 | 0.197 | 0.625 | 4.000 | 0.375 | 0.205 | 0.625 | 2.000 |
| 2L466-0794-RA1270 | 0.313 | 0.156 | 6 | 0.246 | 0.750 | 4.375 | 0.500 | 0.256 | 0.750 | 2.500 |
| 2L466-0953-RA1588 | 0.375 | 0.188 | 6 | 0.295 | 1.000 | 5.000 | 0.625 | 0.307 | 1.000 | 3.000 |
