Инструменты для фрезерования | Инструменты для фрезерования канавок

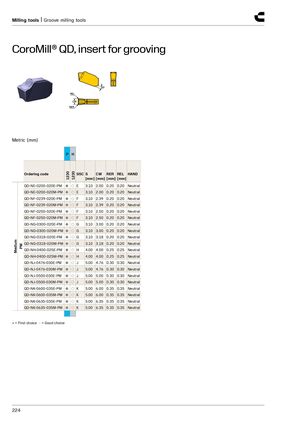

CoroMill® QD, пластина для нарезания канавок
Метрические размеры (мм)
| Код заказа | SSC | S [мм] | CW [мм] | RER [мм] | REL [мм] | HAND | |
|---|---|---|---|---|---|---|---|
| QD-NE-0200-020E-PM | ● ○ | E | 3.10 | 2.00 | 0.20 | 0.20 | Neutral |
| QD-NE-0200-020M-PM | ● ○ | E | 3.10 | 2.00 | 0.20 | 0.20 | Neutral |
| QD-NF-0239-020E-PM | ● ○ | F | 3.10 | 2.39 | 0.20 | 0.20 | Neutral |
| QD-NF-0239-020M-PM | ● ○ | F | 3.10 | 2.39 | 0.20 | 0.20 | Neutral |
| QD-NF-0250-020E-PM | ● ○ | F | 3.10 | 2.50 | 0.20 | 0.20 | Neutral |
| QD-NF-0250-020M-PM | ● ○ | F | 3.10 | 2.50 | 0.20 | 0.20 | Neutral |
| QD-NG-0300-020E-PM | ● ○ | G | 3.10 | 3.00 | 0.20 | 0.20 | Neutral |
| QD-NG-0300-020M-PM | ● ○ | G | 3.10 | 3.00 | 0.20 | 0.20 | Neutral |
| QD-NG-0318-020E-PM | ● ○ | G | 3.10 | 3.18 | 0.20 | 0.20 | Neutral |
| QD-NG-0318-020M-PM | ● ○ | G | 3.10 | 3.18 | 0.20 | 0.20 | Neutral |
| QD-NH-0400-025E-PM | ● ○ | H | 4.00 | 4.00 | 0.25 | 0.25 | Neutral |
| QD-NH-0400-025M-PM | ● ○ | H | 4.00 | 4.00 | 0.25 | 0.25 | Neutral |
| QD-NJ-0476-030E-PM | ● ○ | J | 5.00 | 4.76 | 0.30 | 0.30 | Neutral |
| QD-NJ-0476-030M-PM | ● ○ | J | 5.00 | 4.76 | 0.30 | 0.30 | Neutral |
| QD-NJ-0500-030E-PM | ● ○ | J | 5.00 | 5.00 | 0.30 | 0.30 | Neutral |
| QD-NJ-0500-030M-PM | ● ○ | J | 5.00 | 5.00 | 0.30 | 0.30 | Neutral |
| QD-NK-0600-035E-PM | ● ○ | K | 5.00 | 6.00 | 0.35 | 0.35 | Neutral |
| QD-NK-0600-035M-PM | ● ○ | K | 5.00 | 6.00 | 0.35 | 0.35 | Neutral |
| QD-NK-0635-035E-PM | ● ○ | K | 5.00 | 6.35 | 0.35 | 0.35 | Neutral |
| QD-NK-0635-035M-PM | ● ○ | K | 5.00 | 6.35 | 0.35 | 0.35 | Neutral |
● = Первый выбор ○ = Хороший выбор
