Инструменты фрезерования | Торцевые фрезы

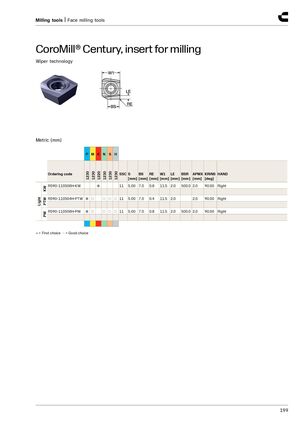

CoroMill® Century, пластина для фрезерования
Технология финишной обработки
Метрические единицы (мм) | Легкое
| Артикул | P | M | K | N | S | H | SSC | S [мм] | BS [мм] | RE [мм] | W1 [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град] | Направление |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R590-110508H-KW | ● | 11 | 5.00 | 7.0 | 0.8 | 11.5 | 2.0 | 500.0 | 2.0 | 90.00 | Правое | |||||
| R590-110504H-PTW | ● | ○ | ○ | ○ | 11 | 5.00 | 7.0 | 0.4 | 11.5 | 2.0 | 2.0 | 90.00 | Правое | |||
| R590-110508H-PW | ● | ○ | ○ | ○ | 11 | 5.00 | 7.0 | 0.8 | 11.5 | 2.0 | 500.0 | 2.0 | 90.00 | Правое |
● = Первый выбор ○ = Хороший выбор
