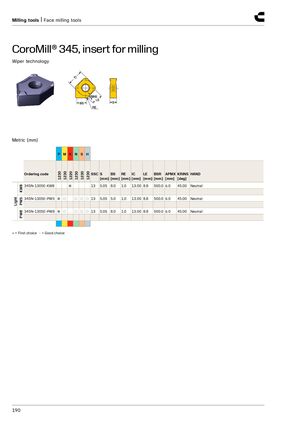

Инструменты фрезерования | Торцевые фрезы
CoroMill® 345, пластина для фрезерования
Технология финишной обработки
Метрические единицы (мм) | Легкое
| Артикул | P | M | K | N | S | H | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град] | Направление |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 345N-1305E-KW8 | ● | 13 | 5.05 | 8.0 | 1.0 | 13.00 | 8.8 | 500.0 | 6.0 | 45.00 | Нейтральное | |||||
| 345N-1305E-PW5 | ● | ○ | ○ | ○ | 13 | 5.05 | 5.0 | 1.0 | 13.00 | 8.8 | 500.0 | 6.0 | 45.00 | Нейтральное | ||
| 345N-1305E-PW8 | ● | ○ | ○ | ○ | 13 | 5.05 | 8.0 | 1.0 | 13.00 | 8.8 | 500.0 | 6.0 | 45.00 | Нейтральное |
● = Первый выбор ○ = Хороший выбор
