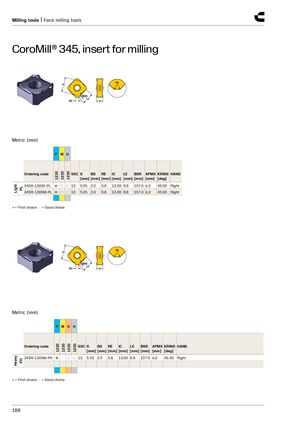

Фрезерные инструменты | Торцовые фрезерные инструменты
CoroMill® 345, пластина для фрезерования
| Артикул | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град.] | HAND |
|---|---|---|---|---|---|---|---|---|---|---|
| 345R-1305E-PL | 13 | 5.05 | 2.0 | 0.8 | 13.00 | 8.8 | 107.0 | 6.0 | 45.00 | Right |
| 345R-1305M-PL | 13 | 5.05 | 2.0 | 0.8 | 13.00 | 8.8 | 107.0 | 6.0 | 45.00 | Right |
● = Первый выбор ○ = Хороший выбор
| Артикул | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град.] | HAND |
|---|---|---|---|---|---|---|---|---|---|---|
| 345R-1305M-PH | 13 | 5.05 | 2.0 | 0.8 | 13.00 | 8.8 | 107.0 | 6.0 | 45.00 | Right |
● = Первый выбор ○ = Хороший выбор
