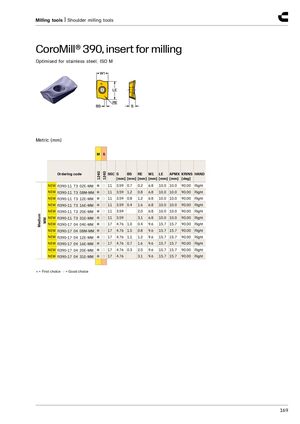

Milling tools | Shoulder milling tools CoroMill® 390, insert for milling​​ Optimised for stainless steel, ISO M Metric (mm) M S 1240 1240 Ordering code SSC S BS RE W1 LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] NEW R390-11 T3 02E-MM ● ○ 11 3.59 0.7 0.2 6.8 10.0 10.0 90.00 Right NEW R390-11 T3 08M-MM ● ○ 11 3.59 1.2 0.8 6.8 10.0 10.0 90.00 Right NEW R390-11 T3 12E-MM ● ○ 11 3.59 0.8 1.2 6.8 10.0 10.0 90.00 Right NEW R390-11 T3 16E-MM ● ○ 11 3.59 0.4 1.6 6.8 10.0 10.0 90.00 Right NEW R390-11 T3 20E-MM ● ○ 11 3.59 2.0 6.8 10.0 10.0 90.00 Right NEW R390-11 T3 31E-MM ● ○ 11 Medium 3.59 3.1 6.8 10.0 10.0 90.00 Right MM NEW R390-17 04 04E-MM ● ○ 17 4.76 1.0 0.4 9.6 15.7 15.7 90.00 Right NEW R390-17 04 08M-MM ● ○ 17 4.76 1.5 0.8 9.6 15.7 15.7 90.00 Right NEW R390-17 04 12E-MM ● ○ 17 4.76 1.1 1.2 9.6 15.7 15.7 90.00 Right NEW R390-17 04 16E-MM ● ○ 17 4.76 0.7 1.6 9.6 15.7 15.7 90.00 Right NEW R390-17 04 20E-MM ● ○ 17 4.76 0.3 2.0 9.6 15.7 15.7 90.00 Right NEW R390-17 04 31E-MM ● ○ 17 4.76 3.1 9.6 15.7 15.7 90.00 Right ● = First choice ○ = Good choice 169
