Фрезерные инструменты | Плечевые фрезы

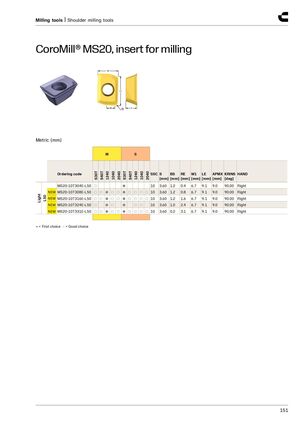

CoroMill® MS20, пластина для фрезерования
Легкий режим L50
Метрические размеры (мм)
| Артикул | Выбор | S (мм) | BS (мм) | RE (мм) | W1 (мм) | LE (мм) | APMX (мм) | KRINS (град) | Направление |
|---|---|---|---|---|---|---|---|---|---|
| MS20-10T304E-L50 | ● (Первый выбор) | 3.60 | 1.2 | 0.4 | 6.7 | 9.1 | 9.0 | 90.00 | Правое вращение |
| MS20-10T308E-L50 | ● (Первый выбор) | 3.60 | 1.2 | 0.8 | 6.7 | 9.1 | 9.0 | 90.00 | Правое вращение |
| MS20-10T316E-L50 | ● (Первый выбор) | 3.60 | 1.2 | 1.6 | 6.7 | 9.1 | 9.0 | 90.00 | Правое вращение |
| MS20-10T324E-L50 | ● (Первый выбор) | 3.60 | 1.0 | 2.4 | 6.7 | 9.1 | 9.0 | 90.00 | Правое вращение |
| MS20-10T331E-L50 | ● (Первый выбор) | 3.60 | 0.2 | 3.1 | 6.7 | 9.1 | 9.0 | 90.00 | Правое вращение |
