Инструменты для точения | Сменные пластины для точения

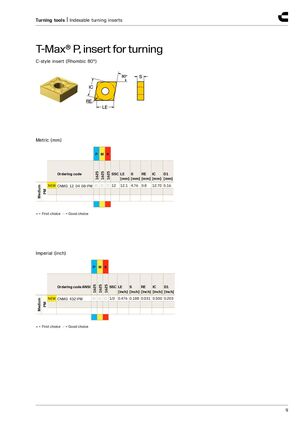

T-Max® P, пластина для точения
C-образная пластина (ромб 80°)
Метрическая система (мм)
| P M K 1625 1625 1625 |
|||||||
| Код заказа | SSC | LE [мм] | S [мм] | RE [мм] | IC [мм] | D1 [мм] | |
|---|---|---|---|---|---|---|---|
| NEW CNMG 12 04 08-PM | ○ ○ ○ | 12 | 12.1 | 4.76 | 0.8 | 12.70 | 5.16 |
| Средняя обработка PM | |||||||
● = Первый выбор ○ = Хороший выбор
Дюймовая система (дюймы)
| P M K 1625 1625 1625 |
|||||||
| Код заказа ANSI | SSC | LE [дюйм] | S [дюйм] | RE [дюйм] | IC [дюйм] | D1 [дюйм] | |
|---|---|---|---|---|---|---|---|
| NEW CNMG 432-PM | ○ ○ ○ | 1/2 | 0.476 | 0.188 | 0.031 | 0.500 | 0.203 |
| Средняя обработка PM | |||||||
● = Первый выбор ○ = Хороший выбор
