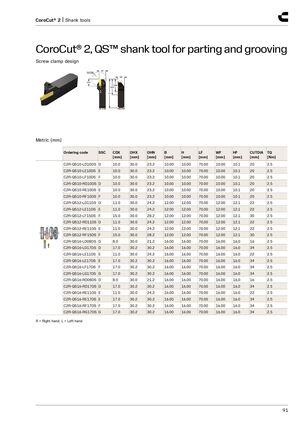

CoroCut® 2, QS™ shank tool for parting and grooving
Screw clamp design
HF CUTDIA WF CDX OHN OHX LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] | TQ [Nm] |
| C2R-QS10-LD10DS | D | 10.0 | 30.0 | 23.2 | 10.00 | 10.00 | 70.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-QS10-LE10DS | E | 10.0 | 30.0 | 23.2 | 10.00 | 10.00 | 70.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-QS10-LF10DS | F | 10.0 | 30.0 | 23.2 | 10.00 | 10.00 | 70.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-QS10-RD10DS | D | 10.0 | 30.0 | 23.2 | 10.00 | 10.00 | 70.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-QS10-RE10DS | E | 10.0 | 30.0 | 23.2 | 10.00 | 10.00 | 70.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-QS10-RF10DS | F | 10.0 | 30.0 | 23.2 | 10.00 | 10.00 | 70.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-QS12-LD11DS | D | 11.0 | 30.0 | 24.2 | 12.00 | 12.00 | 70.00 | 12.00 | 12.1 | 22 | 2.5 |
| C2R-QS12-LE11DS | E | 11.0 | 30.0 | 24.2 | 12.00 | 12.00 | 70.00 | 12.00 | 12.1 | 22 | 2.5 |
| C2R-QS12-LF15DS | F | 15.0 | 30.0 | 28.2 | 12.00 | 12.00 | 70.00 | 12.00 | 12.1 | 30 | 2.5 |
| C2R-QS12-RD11DS | D | 11.0 | 30.0 | 24.2 | 12.00 | 12.00 | 70.00 | 12.00 | 12.1 | 22 | 2.5 |
| C2R-QS12-RE11DS | E | 11.0 | 30.0 | 24.2 | 12.00 | 12.00 | 70.00 | 12.00 | 12.1 | 22 | 2.5 |
| C2R-QS12-RF15DS | F | 15.0 | 30.0 | 28.2 | 12.00 | 12.00 | 70.00 | 12.00 | 12.1 | 30 | 2.5 |
| C2R-QS16-LD08DS | D | 8.0 | 30.0 | 21.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 16 | 2.5 |
| C2R-QS16-LD17DS | D | 17.0 | 30.2 | 30.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-QS16-LE11DS | E | 11.0 | 30.0 | 24.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 22 | 2.5 |
| C2R-QS16-LE17DS | E | 17.0 | 30.2 | 30.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-QS16-LF17DS | F | 17.0 | 30.2 | 30.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-QS16-LG17DS | G | 17.0 | 30.2 | 30.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-QS16-RD08DS | D | 8.0 | 30.0 | 21.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 16 | 2.5 |
| C2R-QS16-RD17DS | D | 17.0 | 30.2 | 30.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-QS16-RE11DS | E | 11.0 | 30.0 | 24.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 22 | 2.5 |
| C2R-QS16-RE17DS | E | 17.0 | 30.2 | 30.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-QS16-RF17DS | F | 17.0 | 30.2 | 30.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-QS16-RG17DS | G | 17.0 | 30.2 | 30.2 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 34 | 2.5 |
R = Right hand, L = Left hand
