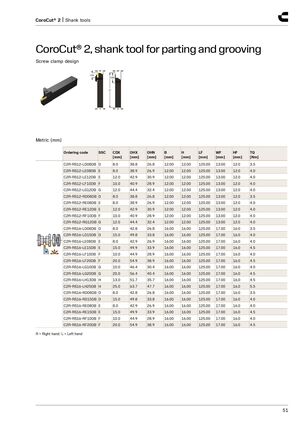

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF WF CDX OHX
LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2R-RS12-LD08DB | D | 8.0 | 38.8 | 26.8 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 3.5 |
| C2R-RS12-LE08DB | E | 8.0 | 38.9 | 26.9 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 4.0 |
| C2R-RS12-LE12DB | E | 12.0 | 42.9 | 30.9 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 4.0 |
| C2R-RS12-LF10DB | F | 10.0 | 40.9 | 28.9 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 4.0 |
| C2R-RS12-LG12DB | G | 12.0 | 44.4 | 32.4 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 4.0 |
| C2R-RS12-RD08DB | D | 8.0 | 38.8 | 26.8 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 3.5 |
| C2R-RS12-RE08DB | E | 8.0 | 38.9 | 26.9 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 4.0 |
| C2R-RS12-RE12DB | E | 12.0 | 42.9 | 30.9 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 4.0 |
| C2R-RS12-RF10DB | F | 10.0 | 40.9 | 28.9 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 4.0 |
| C2R-RS12-RG12DB | G | 12.0 | 44.4 | 32.4 | 12.00 | 12.00 | 125.00 | 13.00 | 12.0 | 4.0 |
| C2R-RS16-LD08DB | D | 8.0 | 42.8 | 26.8 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 3.5 |
| C2R-RS16-LD15DB | D | 15.0 | 49.8 | 33.8 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS16-LE08DB | E | 8.0 | 42.9 | 26.9 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS16-LE15DB | E | 15.0 | 49.9 | 33.9 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.5 |
| C2R-RS16-LF10DB | F | 10.0 | 44.9 | 28.9 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS16-LF20DB | F | 20.0 | 54.9 | 38.9 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.5 |
| C2R-RS16-LG10DB | G | 10.0 | 46.4 | 30.4 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS16-LG20DB | G | 20.0 | 56.4 | 40.4 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.5 |
| C2R-RS16-LH13DB | H | 13.0 | 51.7 | 35.7 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.5 |
| C2R-RS16-LH25DB | H | 25.0 | 63.7 | 47.7 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 5.5 |
| C2R-RS16-RD08DB | D | 8.0 | 42.8 | 26.8 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 3.5 |
| C2R-RS16-RD15DB | D | 15.0 | 49.8 | 33.8 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS16-RE08DB | E | 8.0 | 42.9 | 26.9 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS16-RE15DB | E | 15.0 | 49.9 | 33.9 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.5 |
| C2R-RS16-RF10DB | F | 10.0 | 44.9 | 28.9 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS16-RF20DB | F | 20.0 | 54.9 | 38.9 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.5 |
R = Right hand, L = Left hand
