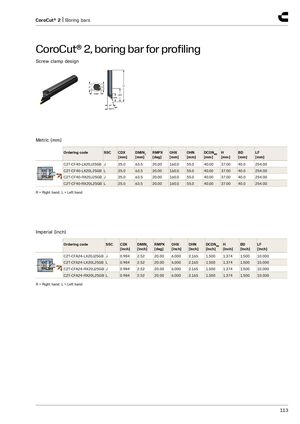

CoroCut® 2, boring bar for profiling
Screw clamp design
H
DMIN
LF
OHX OHN
WF RMPX
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN1 [mm] | RMPX [deg] | OHX [mm] | OHN [mm] | DCONMS [mm] | H [mm] | BD [mm] | LF [mm] |
| C2T-CF40-LX20J25GB | J | 25.0 | 63.5 | 20.00 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 254.00 |
| C2T-CF40-LX20L25GB | L | 25.0 | 63.5 | 20.00 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 254.00 |
| C2T-CF40-RX20J25GB | J | 25.0 | 63.5 | 20.00 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 254.00 |
| C2T-CF40-RX20L25GB | L | 25.0 | 63.5 | 20.00 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 254.00 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX | DMIN1 | RMPX | OHX | OHN | DCONMS | H | BD | LF |
| [inch] | [inch] | [deg] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | ||
| C2T-CFA24-LX20J25GB | J | 0.984 | 2.52 | 20.00 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 10.000 |
| C2T-CFA24-LX20L25GB | L | 0.984 | 2.52 | 20.00 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 10.000 |
| C2T-CFA24-RX20J25GB | J | 0.984 | 2.52 | 20.00 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 10.000 |
| C2T-CFA24-RX20L25GB | L | 0.984 | 2.52 | 20.00 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 10.000 |
R = Right hand, L = Left hand
