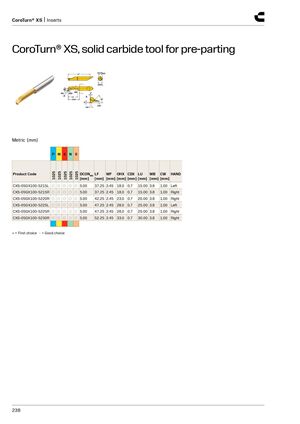

CoroTurn® XS, solid carbide tool for pre-parting
Metric (mm)
| P | M | K | N | S | ||||||||||
| Product Code | 1025 | 1025 | 1025 | 1025 | 1025 | DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | LU [mm] | WB [mm] | CW [mm] | HAND |
| CXS-05GX100-5215L | ○ | ○ | ○ | ○ | ○ | 5.00 | 37.25 | 2.45 | 18.0 | 0.7 | 15.00 | 3.8 | 1.00 | Left |
| CXS-05GX100-5215R | ○ | ○ | ○ | ○ | ○ | 5.00 | 37.25 | 2.45 | 18.0 | 0.7 | 15.00 | 3.8 | 1.00 | Right |
| CXS-05GX100-5220R | ○ | ○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 0.7 | 20.00 | 3.8 | 1.00 | Right |
| CXS-05GX100-5225L | ○ | ○ | ○ | ○ | ○ | 5.00 | 47.25 | 2.45 | 28.0 | 0.7 | 25.00 | 3.8 | 1.00 | Left |
| CXS-05GX100-5225R | ○ | ○ | ○ | ○ | ○ | 5.00 | 47.25 | 2.45 | 28.0 | 0.7 | 25.00 | 3.8 | 1.00 | Right |
| CXS-05GX100-5230R | ○ | ○ | ○ | ○ | ○ | 5.00 | 52.25 | 2.45 | 33.0 | 0.7 | 30.00 | 3.8 | 1.00 | Right |
- = First choice = Good choice
