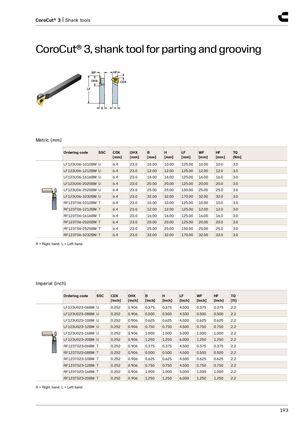

CoroCut® 3, shank tool for parting and grooving
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| LF123U06-1010BM | U | 6.4 | 23.0 | 10.00 | 10.00 | 125.00 | 10.00 | 10.0 | 3.0 |
| LF123U06-1212BM | U | 6.4 | 23.0 | 12.00 | 12.00 | 125.00 | 12.00 | 12.0 | 3.0 |
| LF123U06-1616BM | U | 6.4 | 23.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 3.0 |
| LF123U06-2020BM | U | 6.4 | 23.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 3.0 |
| LF123U06-2525BM | U | 6.4 | 23.0 | 25.00 | 25.00 | 150.00 | 25.00 | 25.0 | 3.0 |
| LF123U06-3232BM | U | 6.4 | 23.0 | 32.00 | 32.00 | 170.00 | 32.00 | 32.0 | 3.0 |
| RF123T06-1010BM | T | 6.4 | 23.0 | 10.00 | 10.00 | 125.00 | 10.00 | 10.0 | 3.0 |
| RF123T06-1212BM | T | 6.4 | 23.0 | 12.00 | 12.00 | 125.00 | 12.00 | 12.0 | 3.0 |
| RF123T06-1616BM | T | 6.4 | 23.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 3.0 |
| RF123T06-2020BM | T | 6.4 | 23.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 3.0 |
| RF123T06-2525BM | T | 6.4 | 23.0 | 25.00 | 25.00 | 150.00 | 25.00 | 25.0 | 3.0 |
| RF123T06-3232BM | T | 6.4 | 23.0 | 32.00 | 32.00 | 170.00 | 32.00 | 32.0 | 3.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code SSC | CDX [inch] | OHX [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | TQ [ft] |
| LF123U023-06BM U | 0.252 | 0.906 | 0.375 | 0.375 | 4.500 | 0.375 | 0.375 | 2.2 |
| LF123U023-08BM U | 0.252 | 0.906 | 0.500 | 0.500 | 4.500 | 0.500 | 0.500 | 2.2 |
| LF123U023-10BM U | 0.252 | 0.906 | 0.625 | 0.625 | 4.500 | 0.625 | 0.625 | 2.2 |
| LF123U023-12BM U | 0.252 | 0.906 | 0.750 | 0.750 | 4.500 | 0.750 | 0.750 | 2.2 |
| LF123U023-16BM U | 0.252 | 0.906 | 1.000 | 1.000 | 5.000 | 1.000 | 1.000 | 2.2 |
| LF123U023-20BM U | 0.252 | 0.906 | 1.250 | 1.250 | 6.000 | 1.250 | 1.250 | 2.2 |
| RF123T023-06BM T | 0.252 | 0.906 | 0.375 | 0.375 | 4.500 | 0.375 | 0.375 | 2.2 |
| RF123T023-08BM T | 0.252 | 0.906 | 0.500 | 0.500 | 4.500 | 0.500 | 0.500 | 2.2 |
| RF123T023-10BM T | 0.252 | 0.906 | 0.625 | 0.625 | 4.500 | 0.625 | 0.625 | 2.2 |
| RF123T023-12BM T | 0.252 | 0.906 | 0.750 | 0.750 | 4.500 | 0.750 | 0.750 | 2.2 |
| RF123T023-16BM T | 0.252 | 0.906 | 1.000 | 1.000 | 5.000 | 1.000 | 1.000 | 2.2 |
| RF123T023-20BM T | 0.252 | 0.906 | 1.250 | 1.250 | 6.000 | 1.250 | 1.250 | 2.2 |
