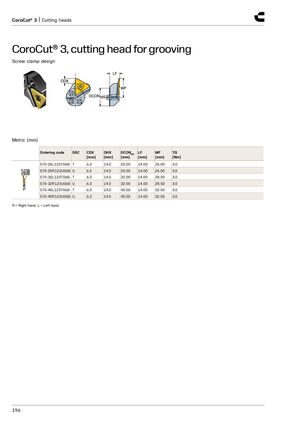

CoroCut® 3, cutting head for grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| 570-25L123T06B | T | 6.3 | 14.0 | 25.00 | 14.00 | 26.00 | 3.0 |
| 570-25R123U06B | U | 6.3 | 14.0 | 25.00 | 14.00 | 26.00 | 3.0 |
| 570-32L123T06B | T | 6.3 | 14.0 | 32.00 | 14.00 | 28.50 | 3.0 |
| 570-32R123U06B | U | 6.3 | 14.0 | 32.00 | 14.00 | 28.50 | 3.0 |
| 570-40L123T06B | T | 6.3 | 14.0 | 40.00 | 14.00 | 32.50 | 3.0 |
| 570-40R123U06B | U | 6.3 | 14.0 | 40.00 | 14.00 | 32.50 | 3.0 |
R = Right hand, L = Left hand
