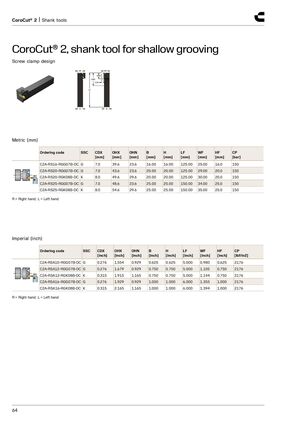

CoroCut® 2, shank tool for shallow grooving
Screw clamp design
HF WF OHN OHX CDX
LF
H B
Metric (mm)
| Ordering code SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CP [bar] |
| C2A-RS16-RGG07B-DC G | 7.0 | 39.6 | 23.6 | 16.00 | 16.00 | 125.00 | 25.00 | 16.0 | 150 |
| C2A-RS20-RGG07B-DC G | 7.0 | 43.6 | 23.6 | 20.00 | 20.00 | 125.00 | 29.00 | 20.0 | 150 |
| C2A-RS20-RGK08B-DC K | 8.0 | 49.6 | 29.6 | 20.00 | 20.00 | 125.00 | 30.00 | 20.0 | 150 |
| C2A-RS25-RGG07B-DC G | 7.0 | 48.6 | 23.6 | 25.00 | 25.00 | 150.00 | 34.00 | 25.0 | 150 |
| C2A-RS25-RGK08B-DC K | 8.0 | 54.6 | 29.6 | 25.00 | 25.00 | 150.00 | 35.00 | 25.0 | 150 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CP [lbf/in2] |
| C2A-RSA10-RGG07B-DC | G | 0.276 | 1.554 | 0.929 | 0.625 | 0.625 | 5.000 | 0.980 | 0.625 | 2176 |
| C2A-RSA12-RGG07B-DC | G | 0.276 | 1.679 | 0.929 | 0.750 | 0.750 | 5.000 | 1.105 | 0.750 | 2176 |
| C2A-RSA12-RGK08B-DC | K | 0.315 | 1.915 | 1.165 | 0.750 | 0.750 | 5.000 | 1.144 | 0.750 | 2176 |
| C2A-RSA16-RGG07B-DC | G | 0.276 | 1.929 | 0.929 | 1.000 | 1.000 | 6.000 | 1.355 | 1.000 | 2176 |
| C2A-RSA16-RGK08B-DC | K | 0.315 | 2.165 | 1.165 | 1.000 | 1.000 | 6.000 | 1.394 | 1.000 | 2176 |
R = Right hand, L = Left hand
