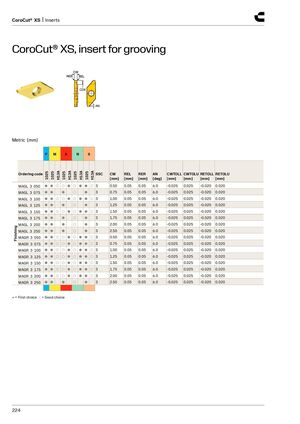

CoroCut® XS, insert for grooving
Metric (mm)
| P | M | K | N | S | |||||||||||||||||
| Orderi | ng code | 1025 | 1025 | H13A | 1025 | H13A | 1025 | H13A | 1025 | H13A SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] | |||
| MAGL | 3 050 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 0.50 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGL | 3 075 | ● | ● | ● | ○ | ● | 3 | 0.75 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | ||||||
| MAGL | 3 100 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 1.00 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGL | 3 125 | ● | ● | ● | ○ | ● | 3 | 1.25 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | ||||||
| MAGL | 3 150 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 1.50 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGL | 3 175 | ● | ● | ● | ○ | ● | 3 | 1.75 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | ||||||
| g MAGL | 3 200 | ● | ● | ● | ○ | ● | 3 | 2.00 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | ||||||
| shin MAGL | 3 250 | ● | ● | ● | ○ | ● | 3 | 2.50 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | ||||||
| Fini MAGR | 3 050 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 0.50 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGR | 3 075 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 0.75 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGR | 3 100 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 1.00 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGR | 3 125 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 1.25 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGR | 3 150 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 1.50 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGR | 3 175 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 1.75 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGR | 3 200 | ● | ● | ○ | ○ | ● | ○ | ● | ● | ○3 | 2.00 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 | |||
| MAGR | 3 250 | ● | ● | ● | ○ | ● | 3 | 2.50 | 0.05 | 0.05 | 6.0 | -0.025 | 0.025 | -0.020 | 0.020 |
- = First choice ○ = Good choice
