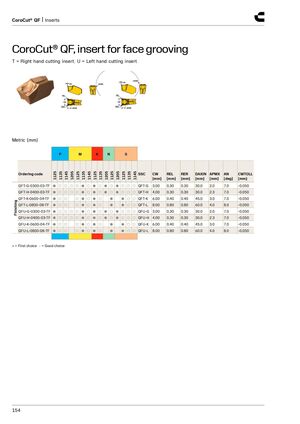

CoroCut® QF, insert for face grooving
T = Right hand cutting insert, U = Left hand cutting insert
Metric (mm)
| P | M | K | N | S | |||||||||||||||||||||
| Ordering code | 1125 | 1135 | 1145 | 1205 | 1125 | 1135 | 1145 | 1125 | 1135 | 1205 1125 | 1205 | 1125 | 1135 | 1145 SSC | CW [mm] | REL [mm] | RER [mm] | DAXIN [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | ||||
| QFT-G-0300-03-TF | ●○ | ○ | ○ | ○ | ● | ○ | ● | ○ | ●○ | ● | ○ | ○ | ○QFT-G | 3.00 | 0.30 | 0.30 | 30.0 | 2.0 | 7.0 | -0.050 | |||||
| QFT-H-0400-03-TF | ●○ | ○ | ○ | ○ | ● | ○ | ● | ○ | ●○ | ● | ○ | ○ | ○QFT-H | 4.00 | 0.30 | 0.30 | 30.0 | 2.3 | 7.0 | -0.050 | |||||
| g QFT-K-0600-04-TF | ●○ | ○ | ○ | ● | ○ | ● | ○ | ● | ● | ○ | ○QFT-K | 6.00 | 0.40 | 0.40 | 45.0 | 3.0 | 7.0 | -0.050 | |||||||
| shin QFT-L-0800-08-TF | ●○ | ○ | ○ | ● | ○ | ● | ○ | ● | ● | ○ | ○QFT-L | 8.00 | 0.80 | 0.80 | 60.0 | 4.0 | 8.0 | -0.050 | |||||||
| Fini QFU-G-0300-03-TF | ●○ | ○ | ○ | ○ | ● | ○ | ● | ○ | ●○ | ● | ○ | ○ | ○QFU-G | 3.00 | 0.30 | 0.30 | 30.0 | 2.0 | 7.0 | -0.050 | |||||
| QFU-H-0400-03-TF | ●○ | ○ | ○ | ○ | ● | ○ | ● | ○ | ●○ | ● | ○ | ○ | ○QFU-H | 4.00 | 0.30 | 0.30 | 30.0 | 2.3 | 7.0 | -0.050 | |||||
| QFU-K-0600-04-TF | ●○ | ○ | ○ | ● | ○ | ● | ○ | ● | ● | ○ | ○QFU-K | 6.00 | 0.40 | 0.40 | 45.0 | 3.0 | 7.0 | -0.050 | |||||||
| QFU-L-0800-08-TF | ●○ | ○ | ○ | ● | ○ | ● | ○ | ● | ● | ○ | ○QFU-L | 8.00 | 0.80 | 0.80 | 60.0 | 4.0 | 8.0 | -0.050 |
- = First choice ○ = Good choice
