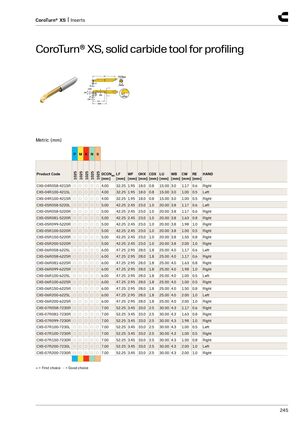

CoroTurn® XS, solid carbide tool for profiling
Metric (mm)
| P M | K | N | S | |||||||||||
| Product Code | 1025 1025 | 1025 | 1025 | 1025 | DCONM [mm] | S LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | LU [mm] | WB [mm] | CW [mm] | RE [mm] | HAND |
| CXS-04R058-4215R | ○○ | ○ | ○ | ○ | 4.00 | 32.25 | 1.95 | 18.0 | 0.8 | 15.00 | 3.0 | 1.17 | 0.6 | Right |
| CXS-04R100-4215L | ○○ | ○ | ○ | ○ | 4.00 | 32.25 | 1.95 | 18.0 | 0.8 | 15.00 | 3.0 | 1.00 | 0.5 | Left |
| CXS-04R100-4215R | ○○ | ○ | ○ | ○ | 4.00 | 32.25 | 1.95 | 18.0 | 0.8 | 15.00 | 3.0 | 1.00 | 0.5 | Right |
| CXS-05R058-5220L | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.17 | 0.6 | Left |
| CXS-05R058-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.17 | 0.6 | Right |
| CXS-05R081-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.63 | 0.8 | Right |
| CXS-05R099-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.98 | 1.0 | Right |
| CXS-05R100-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.00 | 0.5 | Right |
| CXS-05R150-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.50 | 0.8 | Right |
| CXS-05R200-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 2.00 | 1.0 | Right |
| CXS-06R058-6225L | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.17 | 0.6 | Left |
| CXS-06R058-6225R | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.17 | 0.6 | Right |
| CXS-06R081-6225R | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.63 | 0.8 | Right |
| CXS-06R099-6225R | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.98 | 1.0 | Right |
| CXS-06R100-6225L | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.00 | 0.5 | Left |
| CXS-06R100-6225R | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.00 | 0.5 | Right |
| CXS-06R150-6225R | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.50 | 0.8 | Right |
| CXS-06R200-6225L | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 2.00 | 1.0 | Left |
| CXS-06R200-6225R | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 2.00 | 1.0 | Right |
| CXS-07R058-7230R | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.17 | 0.6 | Right |
| CXS-07R081-7230R | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.63 | 0.8 | Right |
| CXS-07R099-7230R | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.98 | 1.0 | Right |
| CXS-07R100-7230L | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.00 | 0.5 | Left |
| CXS-07R100-7230R | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.00 | 0.5 | Right |
| CXS-07R150-7230R | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.50 | 0.8 | Right |
| CXS-07R200-7230L | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 2.00 | 1.0 | Left |
| CXS-07R200-7230R | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 2.00 | 1.0 | Right |
- = First choice = Good choice
