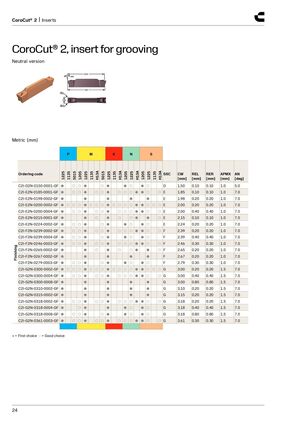

CoroCut® 2, insert for grooving
Neutral version
CDX AN
LIG REL CW RER
Metric (mm)
| P | M | K | N | S | ||||||||
| Ordering code | 1225 1135 5015 | 1205 1225 | 1135 H13A 5015 1225 | 1135 H13A 1205 | 1225 H13A 1205 1225 | 1135 | H13A SSC | CW [mm] | REL [mm] | RER [mm] | APMX [mm] | AN [deg] |
| C2I-D2N-0150-0001-GF | ● ○ | ○● | ○● | ● | ○ ●○ | D | 1.50 | 0.10 | 0.10 | 1.0 | 5.0 | |
| C2I-E2N-0185-0001-GF | ● ○ | ○● | ○○● | ○○ | ○●●○ | ○ | E | 1.85 | 0.10 | 0.10 | 1.0 | 7.0 |
| C2I-E2N-0198-0002-GF | ● | ● | ● | ● ● | E | 1.98 | 0.20 | 0.20 | 1.0 | 7.0 | ||
| C2I-E2N-0200-0002-GF | ●○○ | ○● | ○○○● | ○○○ | ○●●○ | ○○ | E | 2.00 | 0.20 | 0.20 | 1.0 | 7.0 |
| C2I-E2N-0200-0004-GF | ● ○ | ○● | ○○● | ○○ | ○●●○ | ○ | E | 2.00 | 0.40 | 0.40 | 1.0 | 7.0 |
| C2I-E2N-0215-0001-GF | ● | ● | ○ ● | ○ | ○● ● | ○ | E | 2.15 | 0.10 | 0.10 | 1.0 | 7.0 |
| C2I-E2N-0224-0002-GF | ● ○ | ○● | ○● | ● | ○ ●○ | E | 2.24 | 0.20 | 0.20 | 1.0 | 7.0 | |
| C2I-F2N-0239-0002-GF | ● ○ | ○● | ○○● | ○○ | ○●●○ | ○ | F | 2.39 | 0.20 | 0.20 | 1.0 | 7.0 |
| C2I-F2N-0239-0004-GF | ● ○ | ○● | ○● | ● | ○ ●○ | F | 2.39 | 0.40 | 0.40 | 1.0 | 7.0 | |
| g C2I-F2N-0246-0003-GF | ● ○ | ○● | ○○● | ○○ | ○●●○ | ○ | F | 2.46 | 0.30 | 0.30 | 1.0 | 7.0 |
| shin C2I-F2N-0265-0002-GF | ● | ● | ○ ● | ○ | ○● ● | ○ | F | 2.65 | 0.20 | 0.20 | 1.0 | 7.0 |
| Fini C2I-F2N-0267-0002-GF | ● | ● | ● | ● ● | F | 2.67 | 0.20 | 0.20 | 1.0 | 7.0 | ||
| C2I-F2N-0279-0003-GF | ● ○ | ○● | ○● | ● | ○ ●○ | F | 2.79 | 0.30 | 0.30 | 1.0 | 7.0 | |
| C2I-G2N-0300-0002-GF | ●○○ | ○● | ○○○● | ○○○ | ○●●○ | ○○ | G | 3.00 | 0.20 | 0.20 | 1.5 | 7.0 |
| C2I-G2N-0300-0004-GF | ● ○ | ○● | ○○● | ○○ | ○●●○ | ○ | G | 3.00 | 0.40 | 0.40 | 1.5 | 7.0 |
| C2I-G2N-0300-0008-GF | ● | ● | ● | ● ● | G | 3.00 | 0.80 | 0.80 | 1.5 | 7.0 | ||
| C2I-G2N-0310-0002-GF | ● | ● | ● | ● ● | G | 3.10 | 0.20 | 0.20 | 1.5 | 7.0 | ||
| C2I-G2N-0315-0002-GF | ● | ● | ● | ● ● | G | 3.15 | 0.20 | 0.20 | 1.5 | 7.0 | ||
| C2I-G2N-0318-0002-GF | ● ○ | ○● | ○○● | ○○ | ○●●○ | ○ | G | 3.18 | 0.20 | 0.20 | 1.5 | 7.0 |
| C2I-G2N-0318-0004-GF | ● | ○● | ● | ● | ○ ●○ | G | 3.18 | 0.40 | 0.40 | 1.5 | 7.0 | |
| C2I-G2N-0318-0008-GF | ● ○ | ○● | ○● | ● | ○ ●○ | G | 3.18 | 0.80 | 0.80 | 1.5 | 7.0 | |
| C2I-G2N-0361-0003-GF | ● ○ | ○● | ○○● | ○○ | ○●●○ | ○ | G | 3.61 | 0.30 | 0.30 | 1.5 | 7.0 |
- = First choice ○ = Good choice
