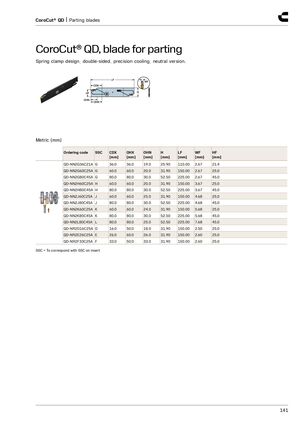

CoroCut® QD, blade for parting
Spring clamp design, double-sided, precision cooling, neutral version.
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| QD-NN2G36C21A | G | 36.0 | 36.0 | 19.0 | 25.90 | 110.00 | 2.67 | 21.4 |
| QD-NN2G60C25A | G | 60.0 | 60.0 | 20.0 | 31.90 | 150.00 | 2.67 | 25.0 |
| QD-NN2G80C45A | G | 80.0 | 80.0 | 30.0 | 52.50 | 225.00 | 2.67 | 45.0 |
| QD-NN2H60C25A | H | 60.0 | 60.0 | 20.0 | 31.90 | 150.00 | 3.67 | 25.0 |
| QD-NN2H80C45A | H | 80.0 | 80.0 | 30.0 | 52.50 | 225.00 | 3.67 | 45.0 |
| QD-NN2J60C25A | J | 60.0 | 60.0 | 25.0 | 31.90 | 150.00 | 4.68 | 25.0 |
| QD-NN2J80C45A | J | 80.0 | 80.0 | 30.0 | 52.50 | 225.00 | 4.68 | 45.0 |
| QD-NN2K60C25A | K | 60.0 | 60.0 | 24.0 | 31.90 | 150.00 | 5.68 | 25.0 |
| QD-NN2K80C45A | K | 80.0 | 80.0 | 30.0 | 52.50 | 225.00 | 5.68 | 45.0 |
| QD-NN2L80C45A | L | 80.0 | 80.0 | 25.0 | 52.50 | 225.00 | 7.68 | 45.0 |
| QD-NR2D16C25A | D | 16.0 | 50.0 | 18.0 | 31.90 | 150.00 | 2.50 | 25.0 |
| QD-NR2E26C25A | E | 26.0 | 60.0 | 26.0 | 31.90 | 150.00 | 2.60 | 25.0 |
| QD-NR2F33C25A | F | 33.0 | 50.0 | 33.0 | 31.90 | 150.00 | 2.60 | 25.0 |
SSC = To correspond with SSC on insert
