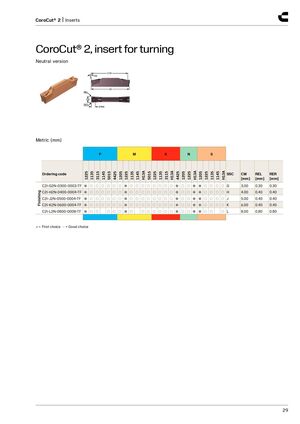

CoroCut® 2, insert for turning
Neutral version
CDX AN
REL CW RER
LIG
APMX
Metric (mm)
| P | M | K | N | S | |||||||||
| Ordering code | 1225 1135 3115 1145 | 5015 4425 | 1205 1225 1135 1145 H13A 5015 | 1225 1135 3115 | H13A | 4425 | 1205 | 1225 H13A | 1205 1225 1135 1145 | H13A SSC | CW [mm] | REL [mm] | RER [mm] |
| C2I-G2N-0300-0003-TF | ●○○○ | ○○ | ○●○○○○ | ○○○ | ○ | ● | ○ | ○● | ●○○○ | ○G | 3.00 | 0.30 | 0.30 |
| ing C2I-H2N-0400-0004-TF | ●○○○ | ○○ | ○●○○○○ | ○○○ | ○ | ● | ○ | ○● | ●○○○ | ○H | 4.00 | 0.40 | 0.40 |
| nish C2I-J2N-0500-0004-TF | ●○○○ | ○○ | ○●○○○○ | ○○○ | ○ | ● | ○ | ○● | ●○○○ | ○J | 5.00 | 0.40 | 0.40 |
| Fi C2I-K2N-0600-0004-TF | ●○○○ | ○○ | ○●○○○○ | ○○○ | ○ | ● | ○ | ○● | ●○○○ | ○K | 6.00 | 0.40 | 0.40 |
| C2I-L2N-0800-0008-TF | ●○○ | ○○ | ○●○ ○○ | ○○○ | ○ | ● | ○ | ○● | ●○○ | ○L | 8.00 | 0.80 | 0.80 |
- = First choice ○ = Good choice
