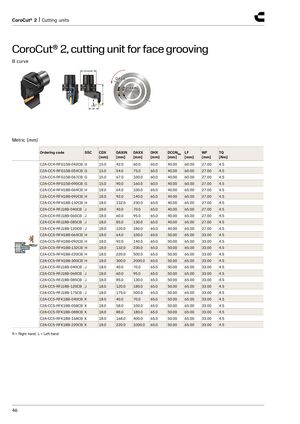

CoroCut® 2 | Cutting units CoroCut® 2, cutting unit for face grooving​​ B curve DCON MS LF CDX WF Metric (mm) Ordering code SSC CDX DAXIN DAXX OHX DCONMS LF WF TQ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [Nm] C2A-CC4-RFG15B-042CB G 15.0 42.0 60.0 60.0 40.00 60.00 27.00 4.5 C2A-CC4-RFG15B-054CB G 15.0 54.0 75.0 60.0 40.00 60.00 27.00 4.5 C2A-CC4-RFG15B-067CB G 15.0 67.0 100.0 60.0 40.00 60.00 27.00 4.5 C2A-CC4-RFG15B-090CB G 15.0 90.0 160.0 60.0 40.00 60.00 27.00 4.5 C2A-CC4-RFH18B-064CB H 18.0 64.0 100.0 65.0 40.00 65.00 27.00 4.5 C2A-CC4-RFH18B-092CB H 18.0 92.0 140.0 65.0 40.00 65.00 27.00 4.5 C2A-CC4-RFH18B-132CB H 18.0 132.0 230.0 65.0 40.00 65.00 27.00 4.5 C2A-CC4-RFJ18B-040CB J 18.0 40.0 70.0 65.0 40.00 65.00 27.00 4.5 C2A-CC4-RFJ18B-060CB J 18.0 60.0 95.0 65.0 40.00 65.00 27.00 4.5 C2A-CC4-RFJ18B-085CB J 18.0 85.0 130.0 65.0 40.00 65.00 27.00 4.5 C2A-CC4-RFJ18B-120CB J 18.0 120.0 180.0 65.0 40.00 65.00 27.00 4.5 C2A-CC5-RFH18B-064CB H 18.0 64.0 100.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFH18B-092CB H 18.0 92.0 140.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFH18B-132CB H 18.0 132.0 230.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFH18B-220CB H 18.0 220.0 500.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFH18B-300CB H 18.0 300.0 2000.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFJ18B-040CB J 18.0 40.0 70.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFJ18B-060CB J 18.0 60.0 95.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFJ18B-085CB J 18.0 85.0 130.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFJ18B-120CB J 18.0 120.0 180.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFJ18B-175CB J 18.0 175.0 500.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFK18B-040CB K 18.0 40.0 70.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFK18B-058CB K 18.0 58.0 100.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFK18B-088CB K 18.0 88.0 180.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFK18B-168CB K 18.0 168.0 400.0 65.0 50.00 65.00 33.00 4.5 C2A-CC5-RFK18B-220CB K 18.0 220.0 1000.0 65.0 50.00 65.00 33.00 4.5 R = Right hand, L = Left hand 46
