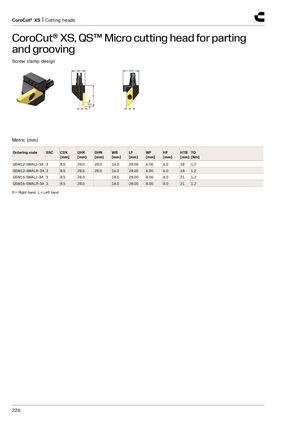

CoroCut® XS, QS™ Micro cutting head for parting
and grooving
Screw clamp design
WB HTB
LF
CDX WF HF
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | WB [mm] | LF [mm] | WF [mm] | HF [mm] | HTB [mm] | TQ [Nm] |
| QSM12-SMALL-3A | 3 | 8.5 | 28.0 | 28.0 | 16.0 | 28.00 | 6.00 | 6.0 | 18 | 1.2 |
| QSM12-SMALR-3A | 3 | 8.5 | 28.0 | 28.0 | 16.0 | 28.00 | 6.00 | 6.0 | 18 | 1.2 |
| QSM16-SMALL-3A | 3 | 8.5 | 28.0 | 18.0 | 28.00 | 8.00 | 8.0 | 21 | 1.2 | |
| QSM16-SMALR-3A | 3 | 8.5 | 28.0 | 18.0 | 28.00 | 8.00 | 8.0 | 21 | 1.2 |
R = Right hand, L = Left hand
