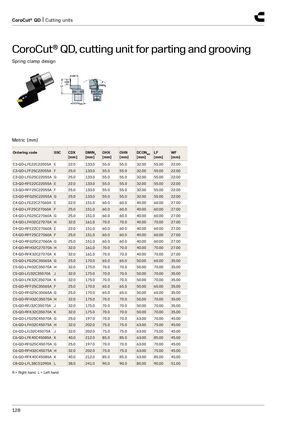

CoroCut® QD | Cutting units
CoroCut® QD, cutting unit for parting and grooving
Spring clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN2 [mm] | OHX [mm] | OHN [mm] | DCONMS [mm] | LF [mm] | WF [mm] |
| C3-QD-LFE22C22055A | E | 22.0 | 133.0 | 55.0 | 55.0 | 32.00 | 55.00 | 22.00 |
| C3-QD-LFF25C22055A | F | 25.0 | 133.0 | 55.0 | 55.0 | 32.00 | 55.00 | 22.00 |
| C3-QD-LFG25C22055A | G | 25.0 | 133.0 | 55.0 | 55.0 | 32.00 | 55.00 | 22.00 |
| C3-QD-RFE22C22055A | E | 22.0 | 133.0 | 55.0 | 55.0 | 32.00 | 55.00 | 22.00 |
| C3-QD-RFF25C22055A | F | 25.0 | 133.0 | 55.0 | 55.0 | 32.00 | 55.00 | 22.00 |
| C3-QD-RFG25C22055A | G | 25.0 | 133.0 | 55.0 | 55.0 | 32.00 | 55.00 | 22.00 |
| C4-QD-LFE22C27060A | E | 22.0 | 151.0 | 60.0 | 60.0 | 40.00 | 60.00 | 27.00 |
| C4-QD-LFF25C27060A | F | 25.0 | 151.0 | 60.0 | 60.0 | 40.00 | 60.00 | 27.00 |
| C4-QD-LFG25C27060A | G | 25.0 | 151.0 | 60.0 | 60.0 | 40.00 | 60.00 | 27.00 |
| C4-QD-LFH32C27070A | H | 32.0 | 161.0 | 70.0 | 70.0 | 40.00 | 70.00 | 27.00 |
| C4-QD-RFE22C27060A | E | 22.0 | 151.0 | 60.0 | 60.0 | 40.00 | 60.00 | 27.00 |
| C4-QD-RFF25C27060A | F | 25.0 | 151.0 | 60.0 | 60.0 | 40.00 | 60.00 | 27.00 |
| C4-QD-RFG25C27060A | G | 25.0 | 151.0 | 60.0 | 60.0 | 40.00 | 60.00 | 27.00 |
| C4-QD-RFH32C27070A | H | 32.0 | 161.0 | 70.0 | 70.0 | 40.00 | 70.00 | 27.00 |
| C4-QD-RFK32C27070A | K | 32.0 | 161.0 | 70.0 | 70.0 | 40.00 | 70.00 | 27.00 |
| C5-QD-LFG25C35065A | G | 25.0 | 170.0 | 65.0 | 65.0 | 50.00 | 65.00 | 35.00 |
| C5-QD-LFH32C35070A | H | 32.0 | 175.0 | 70.0 | 70.0 | 50.00 | 70.00 | 35.00 |
| C5-QD-LFJ32C35070A | J | 32.0 | 175.0 | 70.0 | 70.0 | 50.00 | 70.00 | 35.00 |
| C5-QD-LFK32C35070A | K | 32.0 | 175.0 | 70.0 | 70.0 | 50.00 | 70.00 | 35.00 |
| C5-QD-RFF25C35065A | F | 25.0 | 170.0 | 65.0 | 65.0 | 50.00 | 65.00 | 35.00 |
| C5-QD-RFG25C35065A | G | 25.0 | 170.0 | 65.0 | 65.0 | 50.00 | 65.00 | 35.00 |
| C5-QD-RFH32C35070A | H | 32.0 | 175.0 | 70.0 | 70.0 | 50.00 | 70.00 | 35.00 |
| C5-QD-RFJ32C35070A | J | 32.0 | 175.0 | 70.0 | 70.0 | 50.00 | 70.00 | 35.00 |
| C5-QD-RFK32C35070A | K | 32.0 | 175.0 | 70.0 | 70.0 | 50.00 | 70.00 | 35.00 |
| C6-QD-LFG25C45070A | G | 25.0 | 197.0 | 70.0 | 70.0 | 63.00 | 70.00 | 45.00 |
| C6-QD-LFH32C45075A | H | 32.0 | 202.0 | 75.0 | 75.0 | 63.00 | 75.00 | 45.00 |
| C6-QD-LFJ32C45075A | J | 32.0 | 202.0 | 75.0 | 75.0 | 63.00 | 75.00 | 45.00 |
| C6-QD-LFK40C45085A | K | 40.0 | 212.0 | 85.0 | 85.0 | 63.00 | 85.00 | 45.00 |
| C6-QD-RFG25C45070A | G | 25.0 | 197.0 | 70.0 | 70.0 | 63.00 | 70.00 | 45.00 |
| C6-QD-RFH32C45075A | H | 32.0 | 202.0 | 75.0 | 75.0 | 63.00 | 75.00 | 45.00 |
| C6-QD-RFK40C45085A | K | 40.0 | 212.0 | 85.0 | 85.0 | 63.00 | 85.00 | 45.00 |
| C8-QD-LFL38C51090A | L | 38.0 | 241.0 | 90.0 | 90.0 | 80.00 | 90.00 | 51.00 |
R = Right hand, L = Left hand
