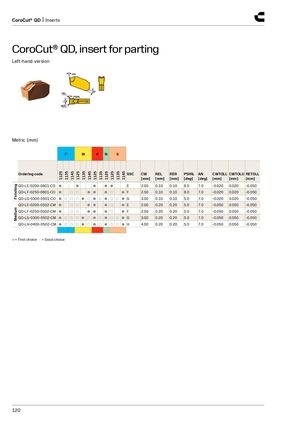

CoroCut® QD, insert for parting
Left-hand version
Metric (mm)
| P | M | K | N | S | |||||||||||||||
| Ordering code | 1125 1135 | 1145 1125 | 1135 | 1145 | 1125 | 1135 | 1125 | 1125 | 1135 | 1145 SSC | CW [mm] | REL [mm] | RER [mm] | PSIRL [deg] | AN [deg] | CWTOLL [mm] | CWTOL [mm] | U RETOLL [mm] | |
| ing QD-LE-0200-0801-CO | ● | ● | ● | ● | ● | E | 2.00 | 0.10 | 0.10 | 8.0 | 7.0 | -0.020 | 0.020 | -0.050 | |||||
| nish QD-LF-0250-0801-CO | ● | ○○ | ● | ● | ● | ○ | ●F | 2.50 | 0.10 | 0.10 | 8.0 | 7.0 | -0.020 | 0.020 | -0.050 | ||||
| Fi QD-LG-0300-0501-CO | ●○ | ○○ | ● | ○ | ● | ○ | ● | ○ | ○ | ●G | 3.00 | 0.10 | 0.10 | 5.0 | 7.0 | -0.020 | 0.020 | -0.050 | |
| QD-LE-0200-0502-CM | ● | ○○ | ● | ● | ● | ○ | ●E | 2.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.050 | 0.050 | -0.050 | ||||
| dium QD-LF-0250-0502-CM | ● | ○○ | ● | ● | ● | ○ | ●F | 2.50 | 0.20 | 0.20 | 5.0 | 7.0 | -0.050 | 0.050 | -0.050 | ||||
| Me QD-LG-0300-0502-CM | ●○ | ○○ | ● | ○ | ● | ○ | ● | ○ | ○ | ●G | 3.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.050 | 0.050 | -0.050 | |
| QD-LH-0400-0502-CM | ●○ | ○○ | ● | ○ | ● | ○ | ● | ○ | ○ | ●H | 4.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.050 | 0.050 | -0.050 |
- = First choice ○ = Good choice
