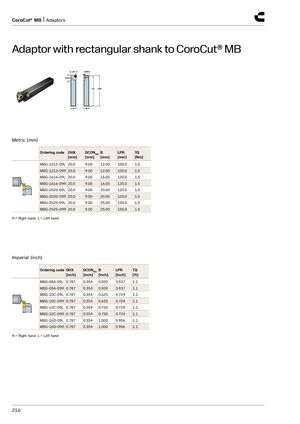

Adaptor with rectangular shank to CoroCut® MB
Metric (mm)
| Ordering code | OHX [mm] | DCONW [mm] | S B [mm] | LPR [mm] | TQ [Nm] |
| MBG-1212-09L | 20.0 | 9.00 | 12.00 | 100.0 | 1.5 |
| MBG-1212-09R | 20.0 | 9.00 | 12.00 | 100.0 | 1.5 |
| MBG-1616-09L | 20.0 | 9.00 | 16.00 | 120.0 | 1.5 |
| MBG-1616-09R | 20.0 | 9.00 | 16.00 | 120.0 | 1.5 |
| MBG-2020-09L | 20.0 | 9.00 | 20.00 | 120.0 | 1.5 |
| MBG-2020-09R | 20.0 | 9.00 | 20.00 | 120.0 | 1.5 |
| MBG-2525-09L | 20.0 | 9.00 | 25.00 | 150.0 | 1.5 |
| MBG-2525-09R | 20.0 | 9.00 | 25.00 | 150.0 | 1.5 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | OHX [inch] | DCONW [inch] | S B [inch] | LPR [inch] | TQ [ft] |
| MBG-08A-09L | 0.787 | 0.354 | 0.500 | 3.937 | 1.1 |
| MBG-08A-09R | 0.787 | 0.354 | 0.500 | 3.937 | 1.1 |
| MBG-10C-09L | 0.787 | 0.354 | 0.625 | 4.724 | 1.1 |
| MBG-10C-09R | 0.787 | 0.354 | 0.625 | 4.724 | 1.1 |
| MBG-12C-09L | 0.787 | 0.354 | 0.750 | 4.724 | 1.1 |
| MBG-12C-09R | 0.787 | 0.354 | 0.750 | 4.724 | 1.1 |
| MBG-16D-09L | 0.787 | 0.354 | 1.000 | 5.906 | 1.1 |
| MBG-16D-09R | 0.787 | 0.354 | 1.000 | 5.906 | 1.1 |
R = Right hand, L = Left hand
